MACHINES & KITS
Crafted for Precision.
Built for you.
Seven families built around a single tooling interface, designed and assembled in Munich.
THE RANGE
Machines for preparation and finishing.
that fits all your applications.
Years of industrial expertise and a deep passion for polishing and watchmaking, turned into tools made in Germany, supplied at fair prices, and designed to fit seamlessly with the tools already have on your bench.
FLAGSHIP · ALL-IN-ONE
XPRO Series
Lapping, polishing, satin, chamfering, grinding finishing on a single system. Three configurations, from the compact XPRO 1 to the OLED-controlled XPRO Touch.

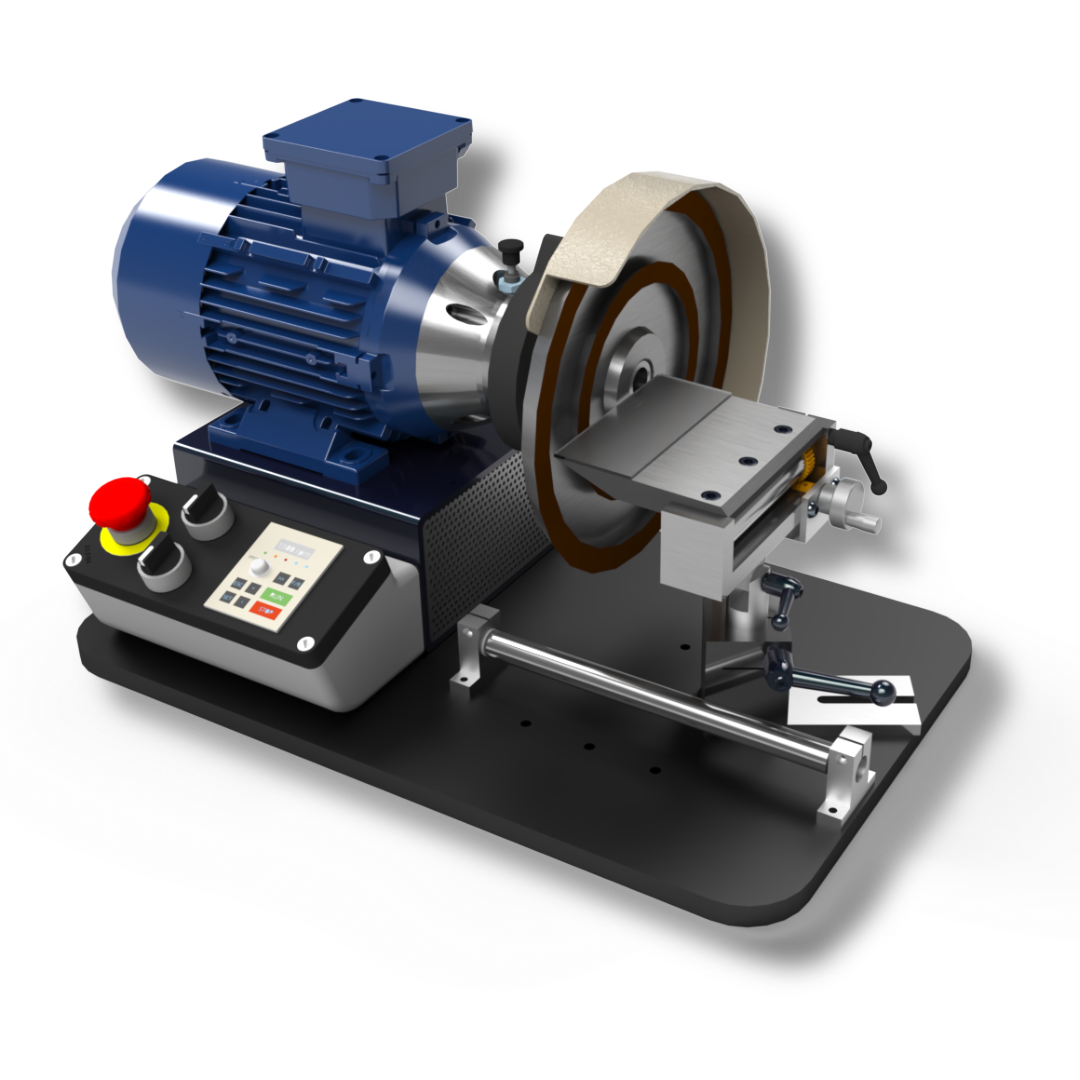

X550-MONO
One spindle, full precision. The entry door into the precision polishing.

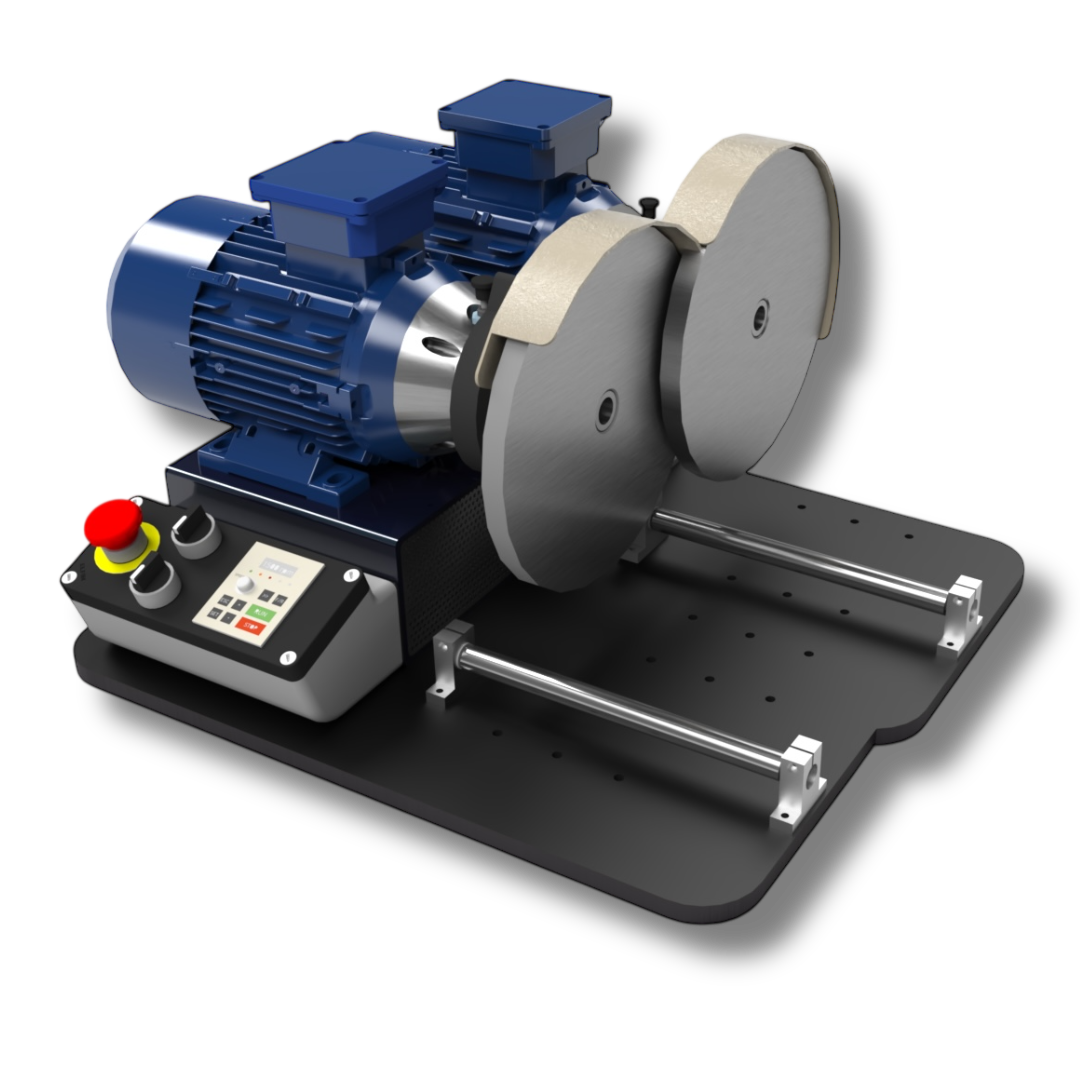

X550 DUO
Made for productions. Two working positions on one frame.

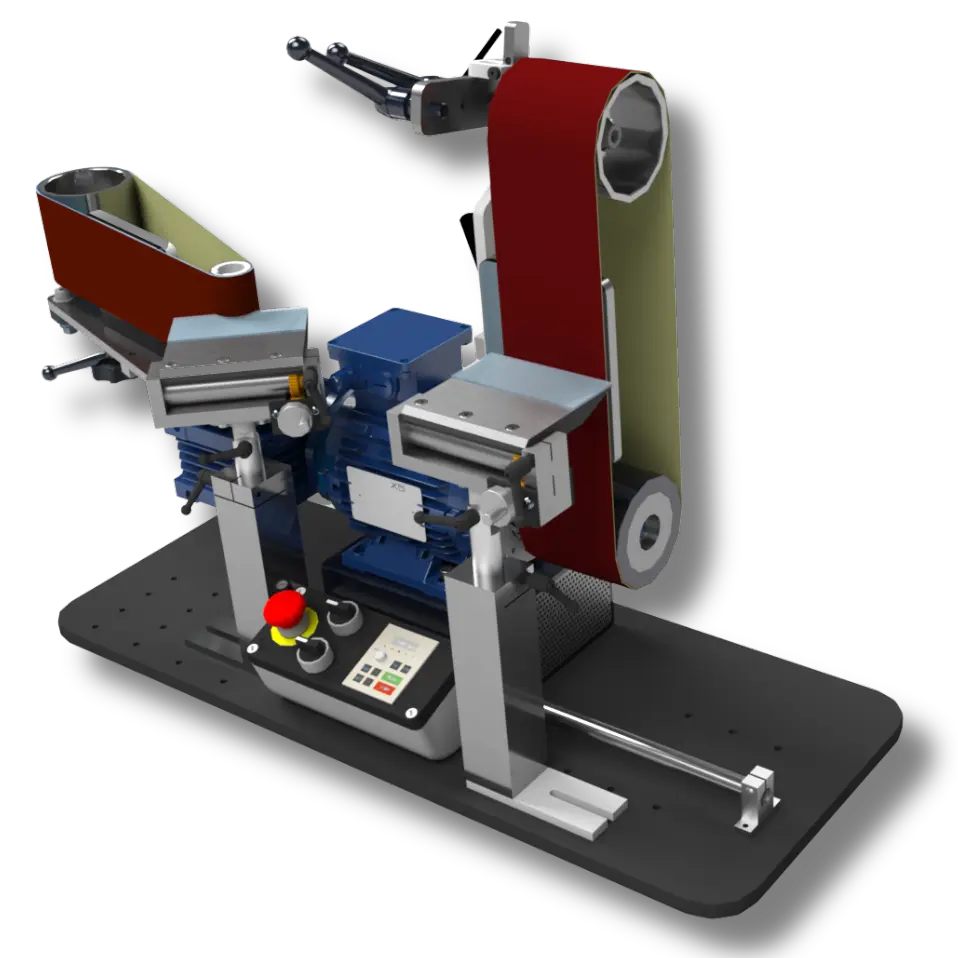

BELT-MASTER
Precision Satin, brushed effects, preparation before polishing.
COMPLETE PLATFORM

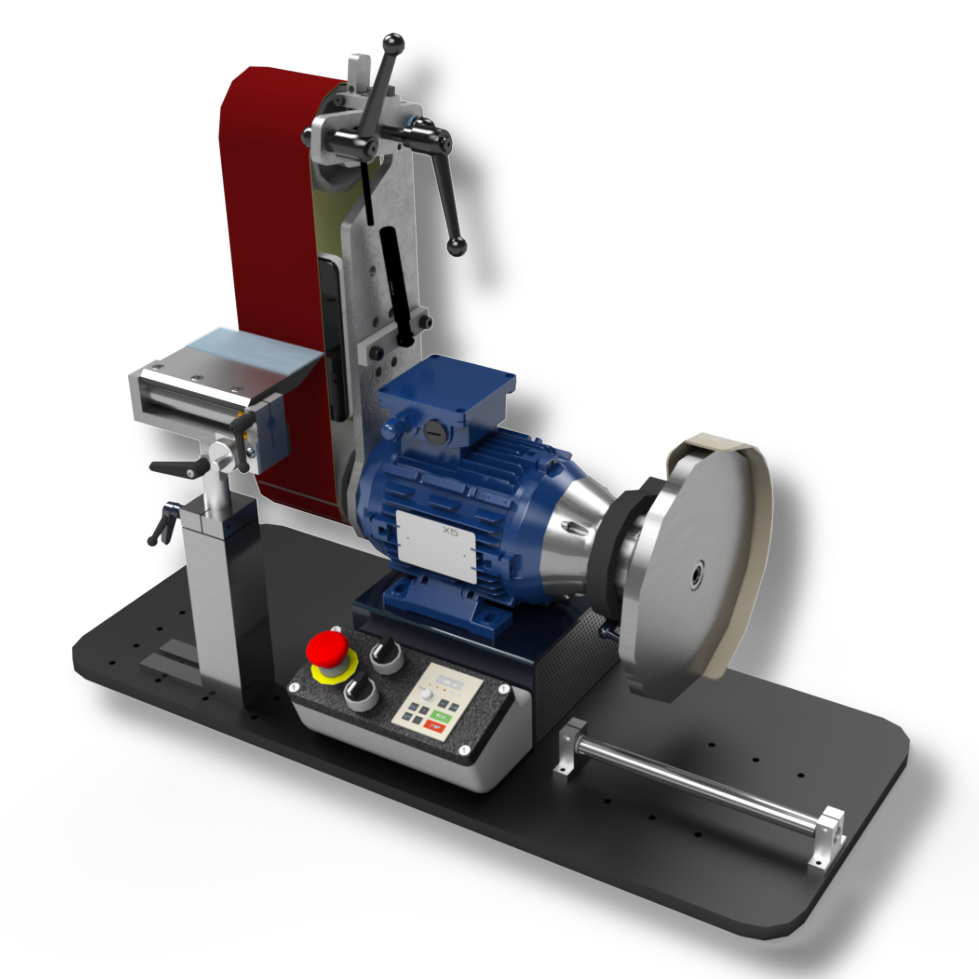

X550 EVO
One spindle, two side, complete modularity, and every tooling option in the range.
Complete stations

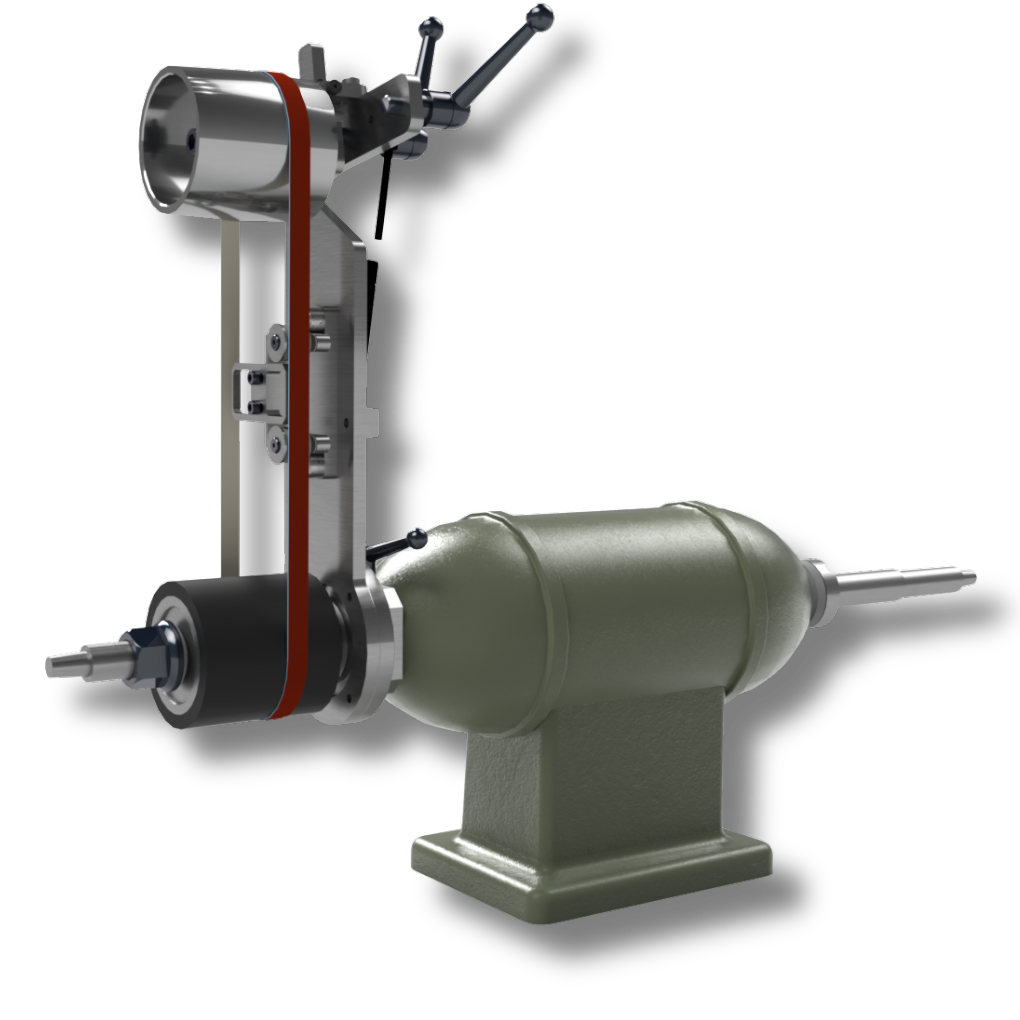

Bench, machine, extraction and tooling delivered, installed and set up as one working station.Vitax® Kits
Bring MICROMECALP geometry to the Vitax bench you already own, without replacing the machine.
Compare the Micromecalp range
| Compare | X550 MONO | X550 DUO | X550 EVO | BELT MASTER | XPRO 1 | XPRO 2 |
|---|---|---|---|---|---|---|
| Catalogue name | Single Spindle unit | Double Spindle unit | Combined Finishing unit | Combined belt unit | All-in-one workstation | All-in-one workstation |
| Working sides | 1 spindle | 2 spindles | 1 spindle + belt arm | Belt only, left and right | 1 spindle | 1 spindle + belt arm |
| Motor | 550 W/0,75 HP | 2 × 550 W/0,75 HP | 550 W/0,75 HP | 550 W/0,75 HP | 1.5 kW/ 2,0 HP | 1.5 kW/ 2,0 HP |
| Speed range | 0–1800 rpm | 0–1800 rpm | 0–1800 rpm | 0–1800 rpm | 0–4500 rpm (6000rpm) | 0–4500 rpm (6000rpm) |
| Tooling interface | UMS* | 2x UMS* | UMS* + Belt System | Belt systems Only | UMS* | UMS* + Belt System |
| Precision Lapping | Yes | Yes | Yes | — | Yes | Yes |
| Precision Shafts | Yes | Yes | Yes | — | Yes | Yes |

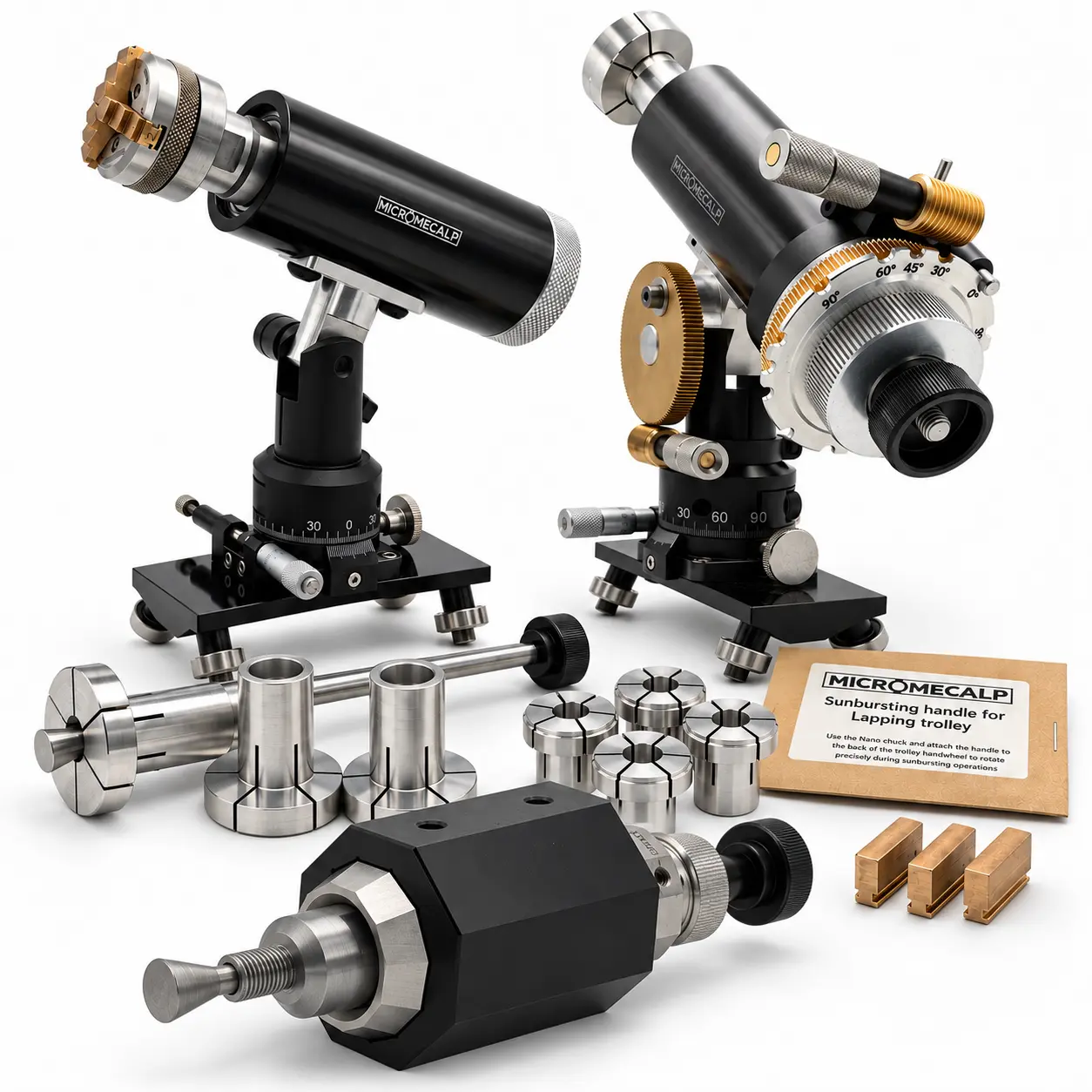

Lapping Trolley | Yes | Yes | Yes | Yes (optional) | Yes | Yes |
Anglage/Chamfering | — | — | — | — | Yes | Yes |
| Belt system | — | — | 100 × 1000 mm 6 x 1000 mm 10 x 1000 mm 15 x 1000 mm | 100 × 1000 mm, 6 x 1000 mm 10 x 1000 mm 15 x 1000 mm (vertical and horizontal) | Possible | 100 × 1000 mm, 6 x 1000 mm 10 x 1000 mm 15 x 1000 mm (vertical and horizontal possible) |
| Noise level (max) | 56 dB(A) | 56 dB(A) | 56 dB(A) | 56 dB(A) | 49–58 dB(A) | 49–58 dB(A) |
| Dimensions/Weights | 570x320x300mm - 38kg | 590x470x300mm - 48kg | 800x400x750mm - 49kg | 800x400x750mm - 52kg | Acc. configuration | Acc. configuration |
- UMS : Universal Micromecalp Shaft - Precision spindle nozzle that allows you to fit a wide range of precision accessories.
Do you need help to select ?
Tell us the parts you finish and the space you have. We come back with a configuration and a price.
