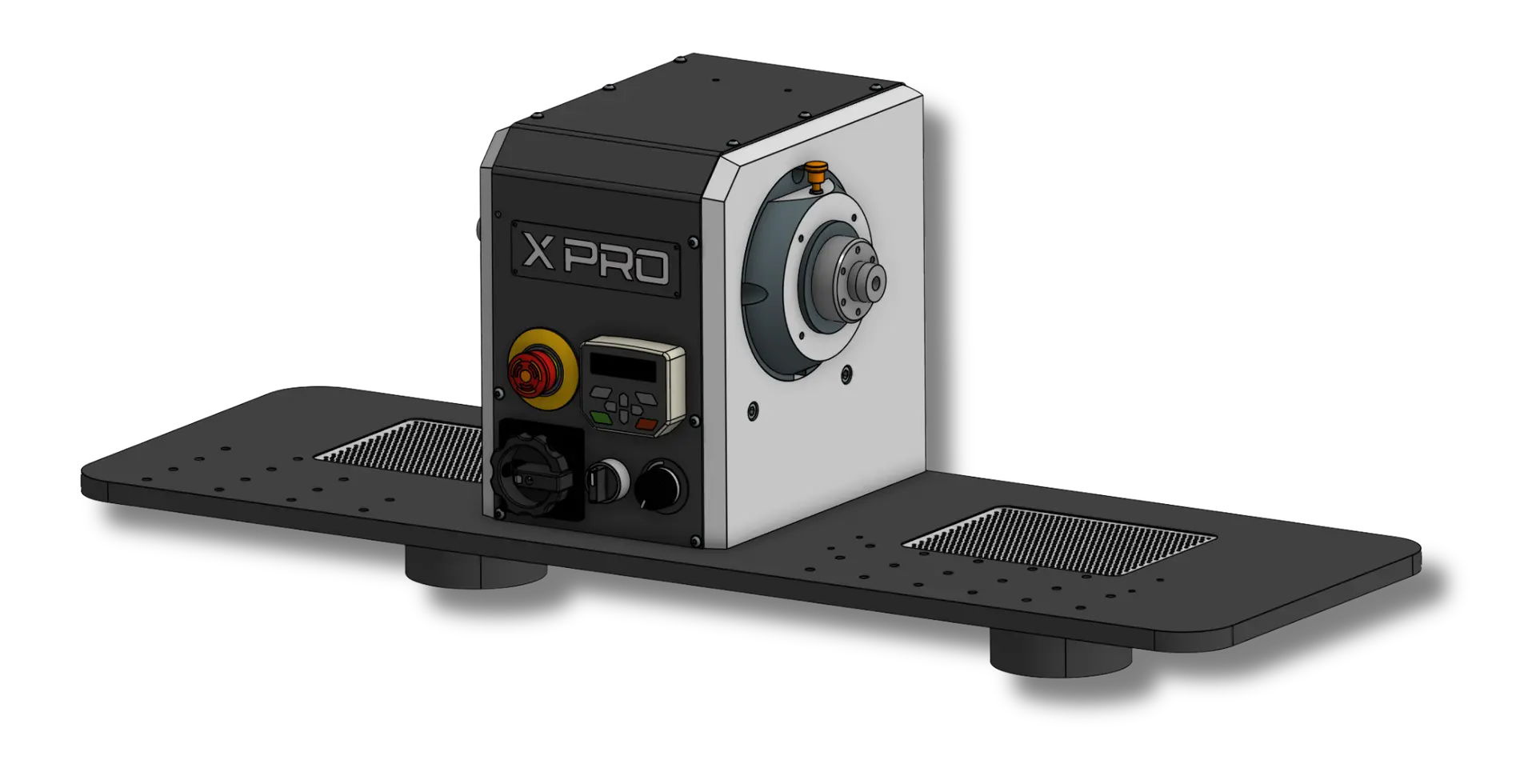

ALL-IN-ONE WORKSTATION

XPRO Series

Configurable. Ultra-flexible. A workstation for every operation.

SCROLL

Lapping.Satin.Polishing. Chamfering. Graining.Cerclage.

Three models.

From the easy and compact XPRO1 to a full XPRO2 Touch

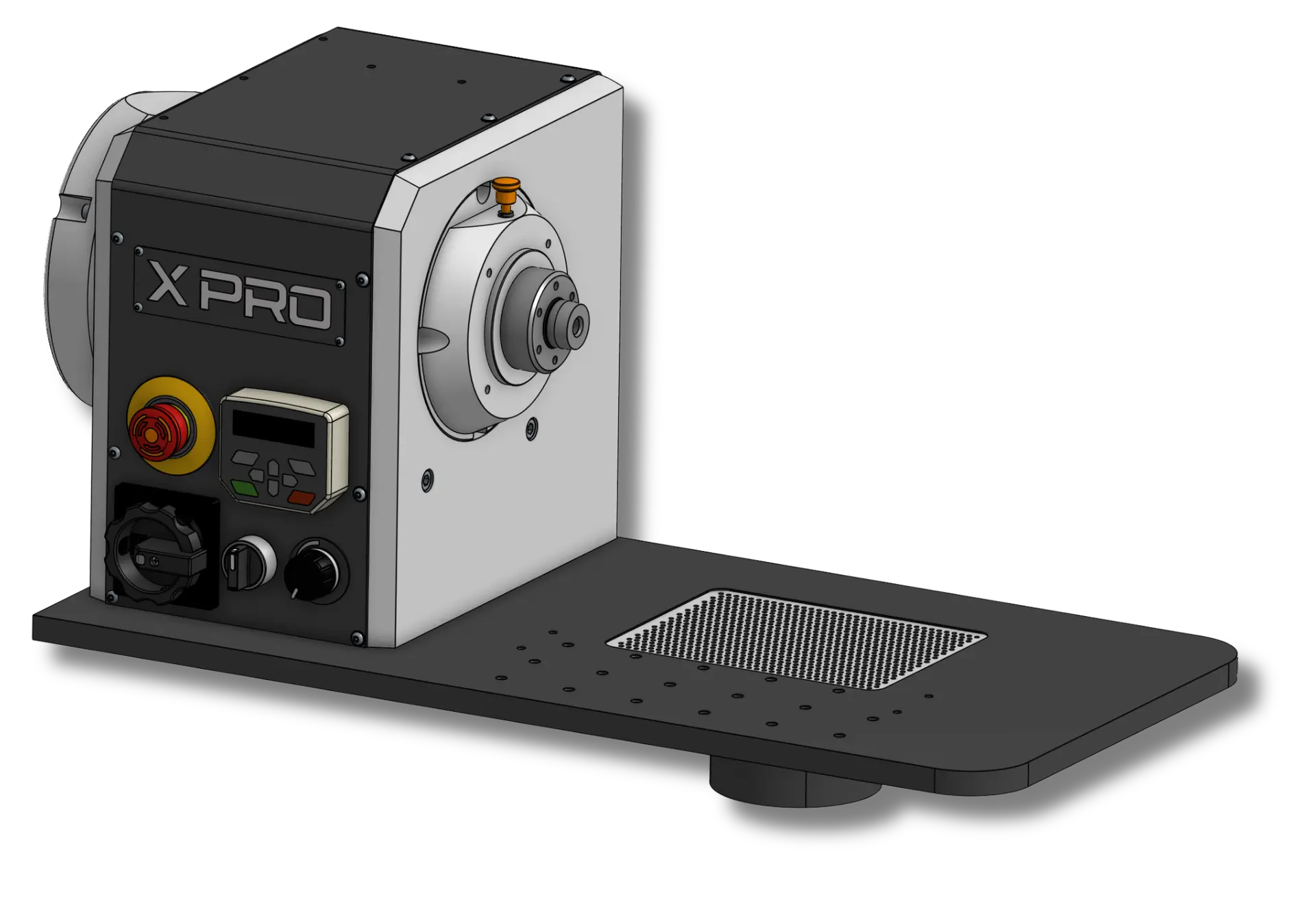

XPRO 1

One working side. The compact configuration of the platform.

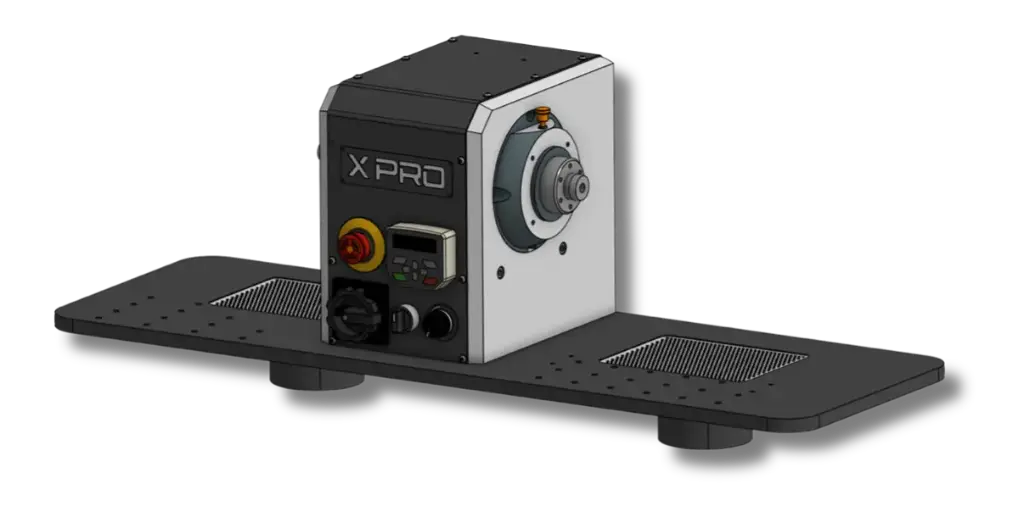

XPRO 2

The larger base, with room for a second module (belt satin system)beside the spindle.

WI-FI CONNECTED

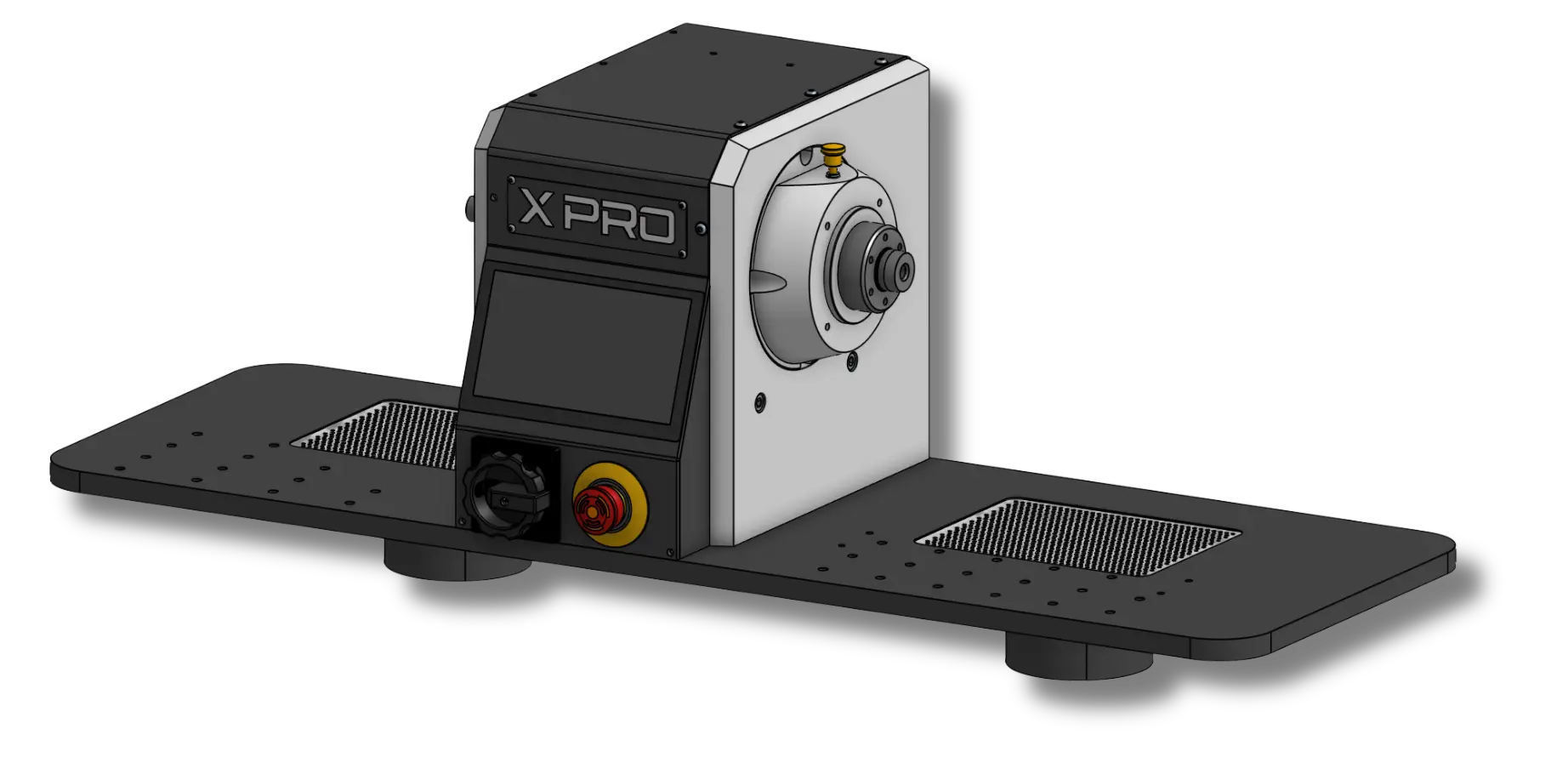

XPRO Touch

Available for both platforms XPRO1 and XPRO2

AVAILABLE CONFIGURATIONS (left-handed folks we think about you!)

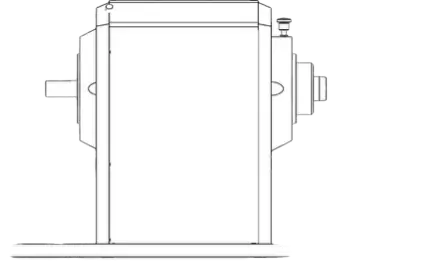

XPRO 2 · RHRight hand

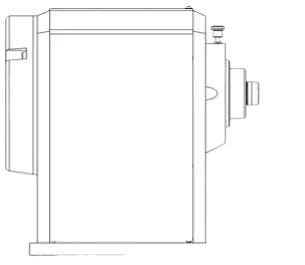

XPRO 1 · RHRight hand

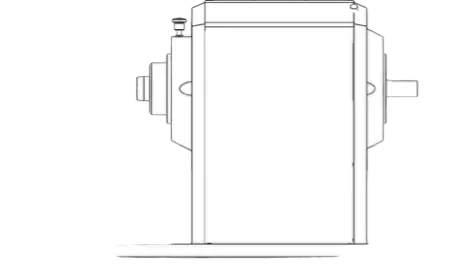

XPRO 2 · LHLeft hand

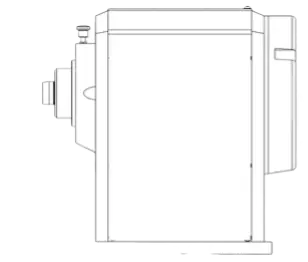

XPRO 1 · LHLeft hand

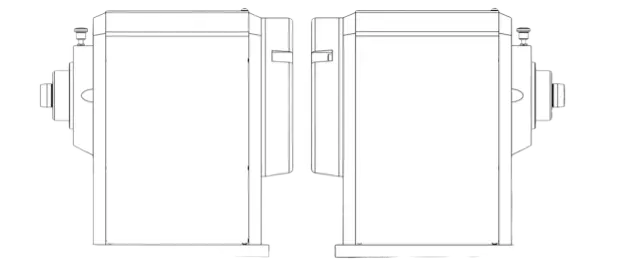

XPRO 1 DUOTwo sides

Designed, assembled and measured in our workshop in Munich.

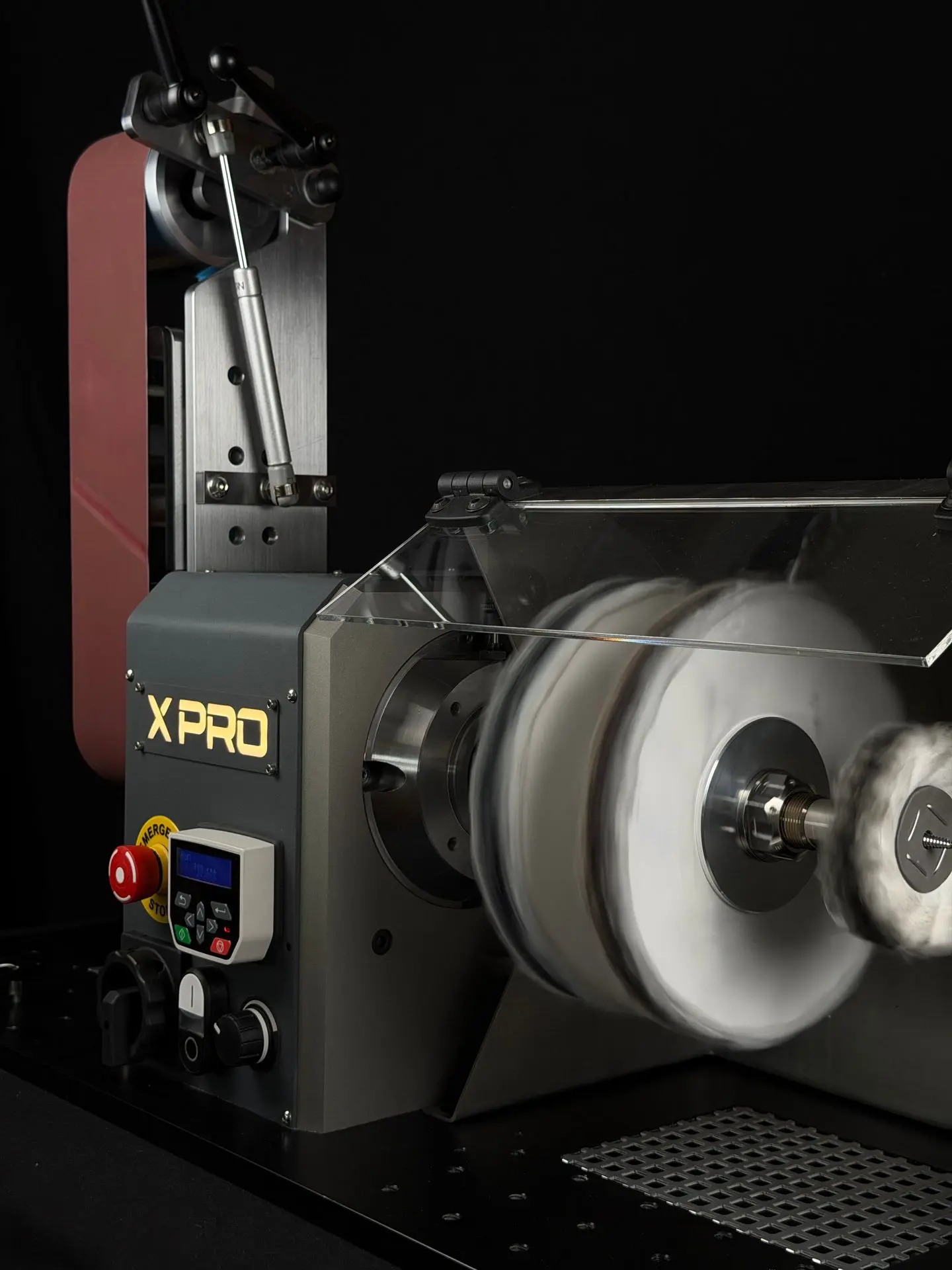

XPRO2. Two sides. One machine.

A satin finisher and high-speed precision side, on the same frame.

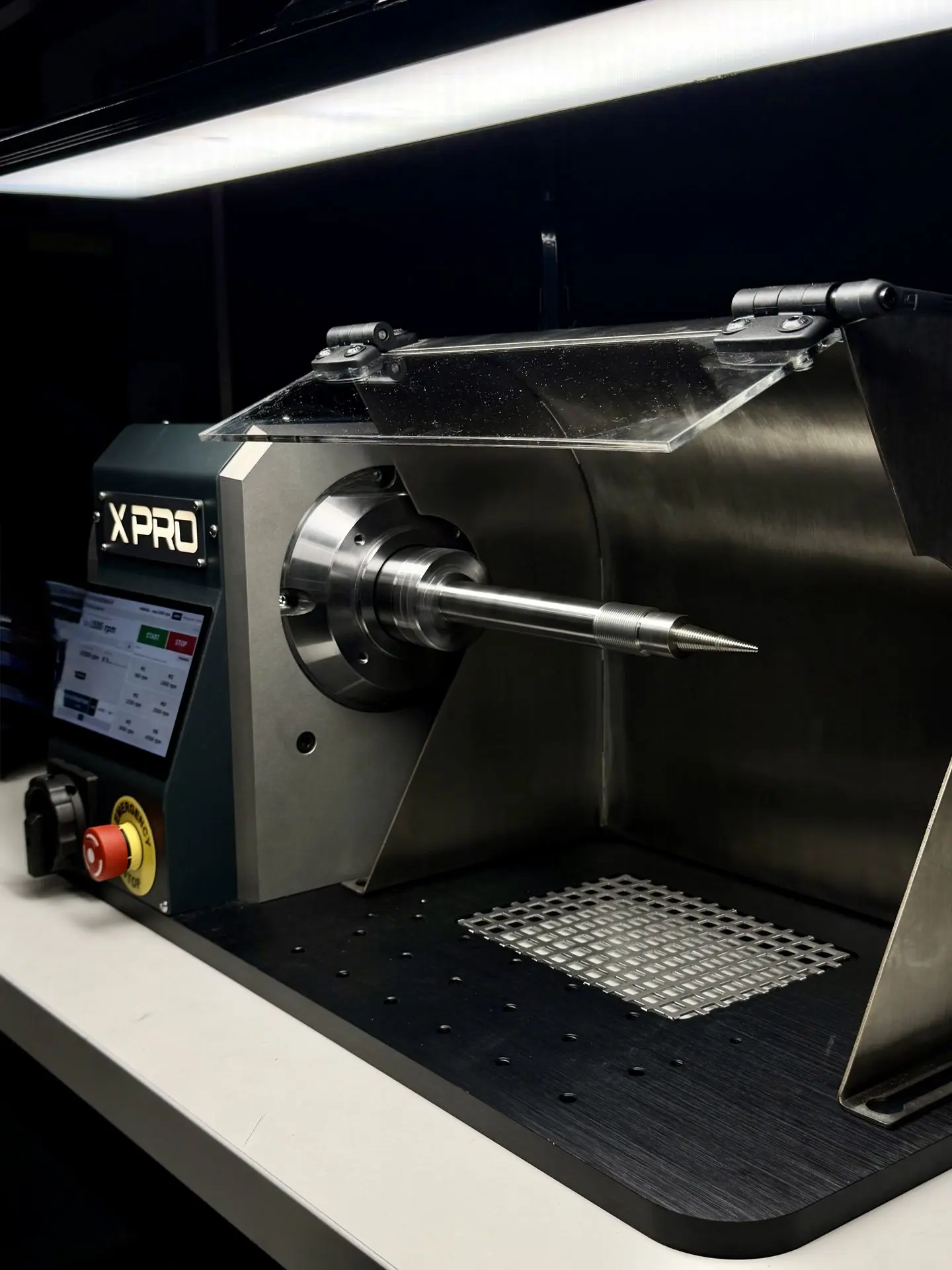

Operator working at an XPRO finishing station

XPRO · BOTH SIDES

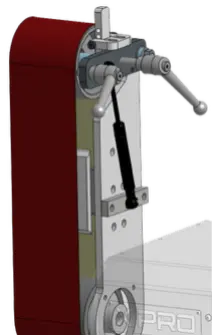

01 — BELT SIDE

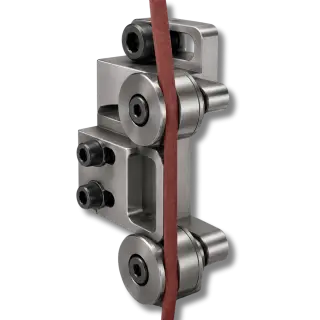

Vertical and horizontal belt arms

Satin and brushed grains, with the arm mounted in the position the part needs. You can configure your XPRO according your operations (and not the other way around!)

02 — PRECISION SIDE

The Universal MICROMECALP Shaft (UMS)

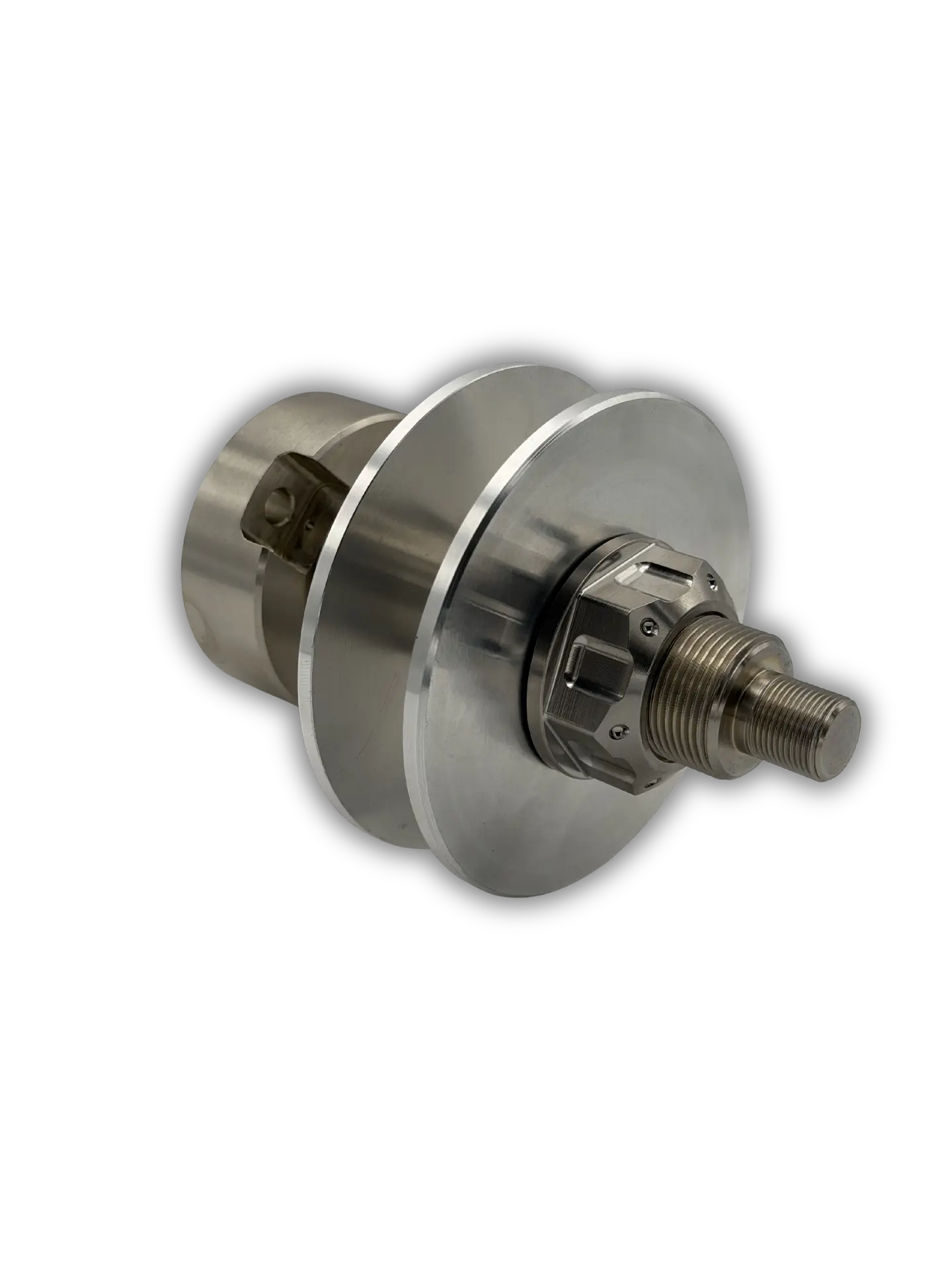

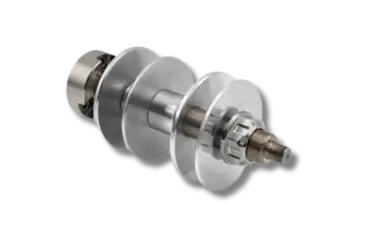

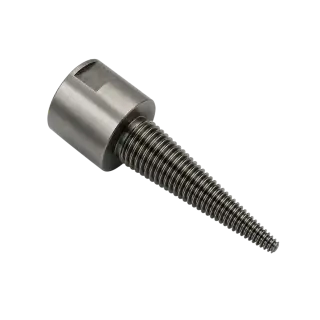

A forged precision spindle on high-precision bearings, in hardened and rectified steel. Every accessory from our X-series fits it. (displayed here with a 25mm polishing shaft and its pigtail end).

03 — BOTH AT ONCE

Configured around your parts

Lapping and vertical satin, polishing, dual satin, horizontal belt, dual belts. The modules change; the machine underneath does not.

Direct drive, under control.

1,500 WDIRECT-DRIVE SPINDLE

4,500 rpmUP TO 6000rpm (optional)

49 dB(A)AT 2250 RPM

Built to last for ever.

XPRO 15 mm aeronautical aluminium base plate, black hard anodised

15 mm aluminium base

Aeronautical-grade, black anodised and hard-coated against scratches, rectified, with two holes for the extraction system.

MICROMECALP Spindle-Motor

Forged spindle shaft on high-precision bearings, hardened, rectified and balanced in house. Compatible with every X-range accessory.

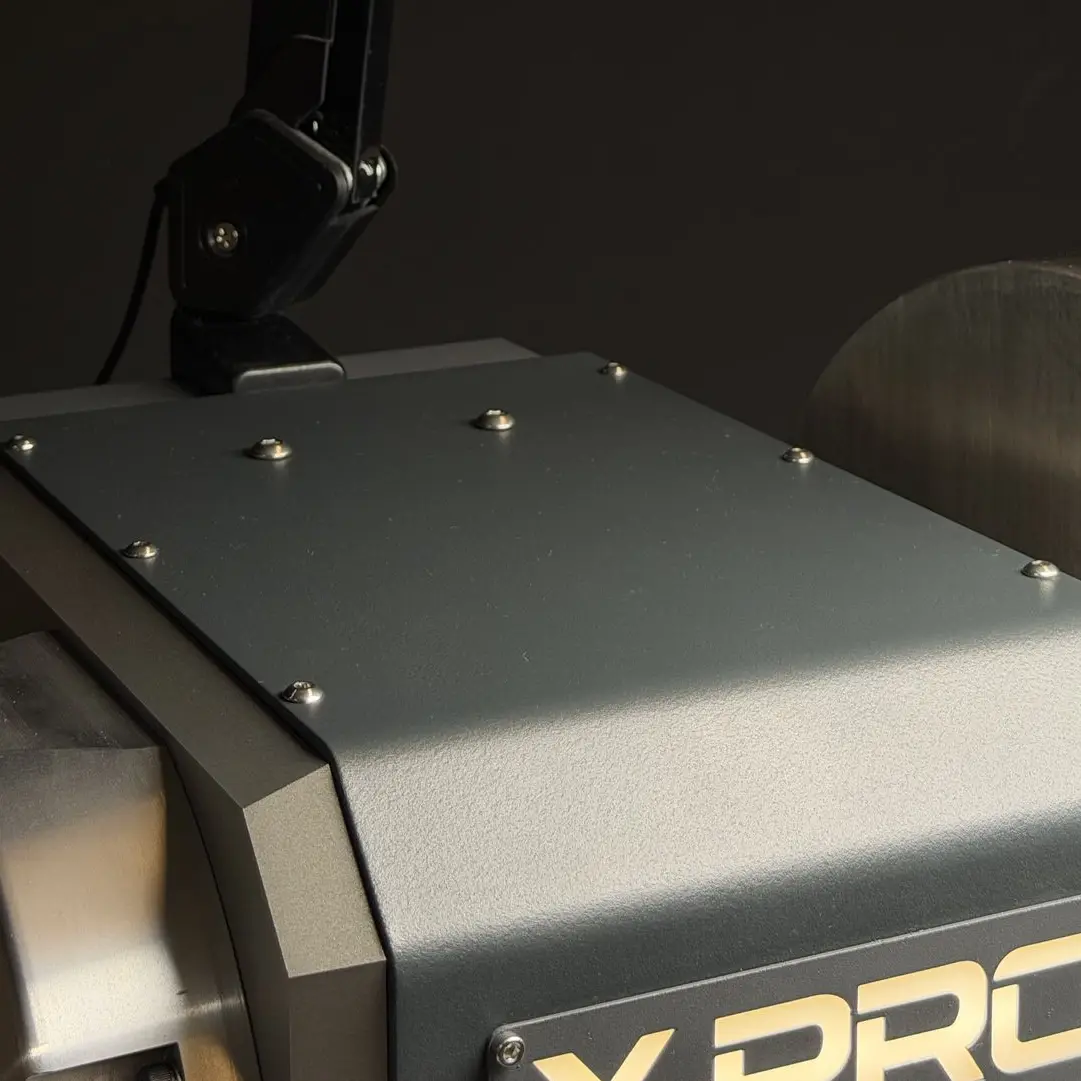

Steel chassis

Built for stability, and quiet operations (down to 49dB) with integrated air-cooling management (for a continuous 24/7 use) and an illuminated XPRO logo.

The All-in-One solution that you can adapt to your parts.

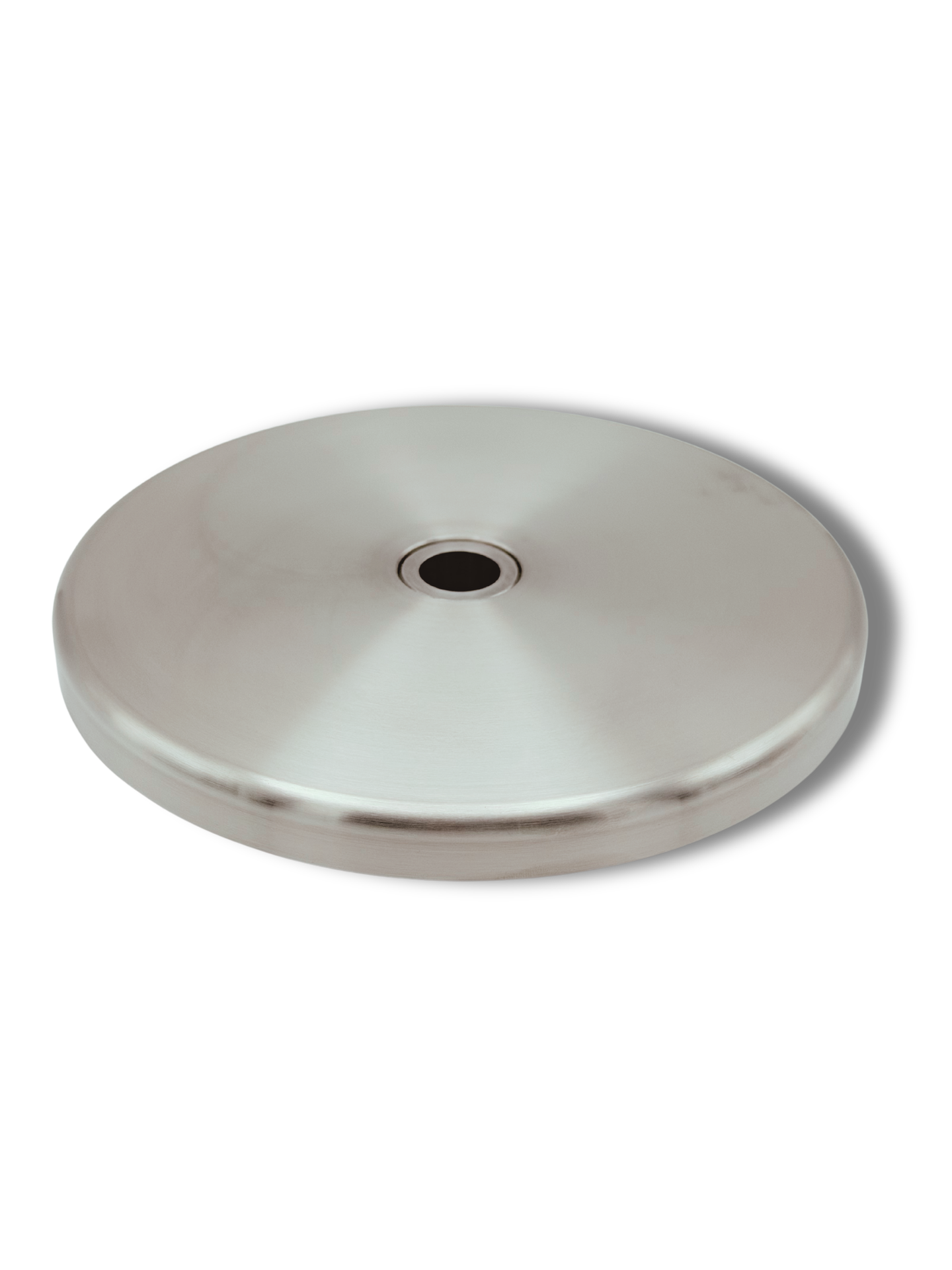

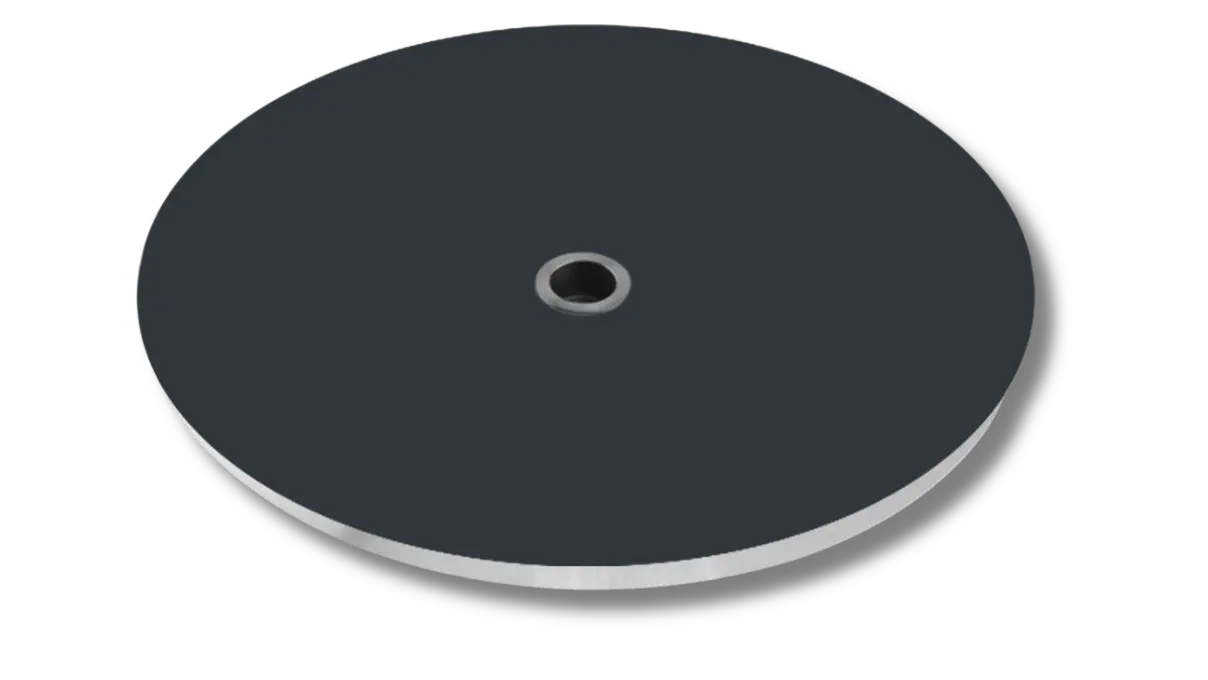

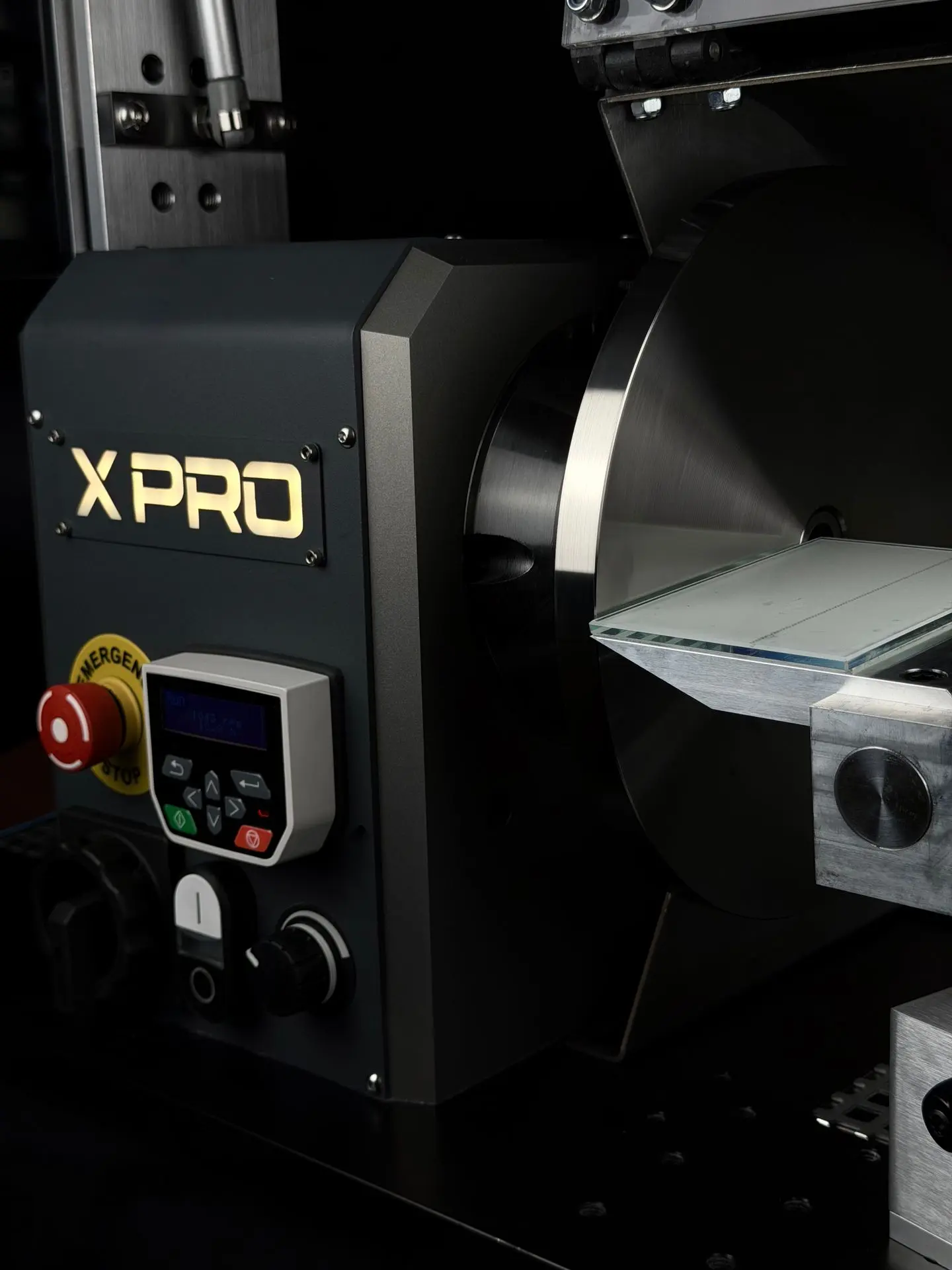

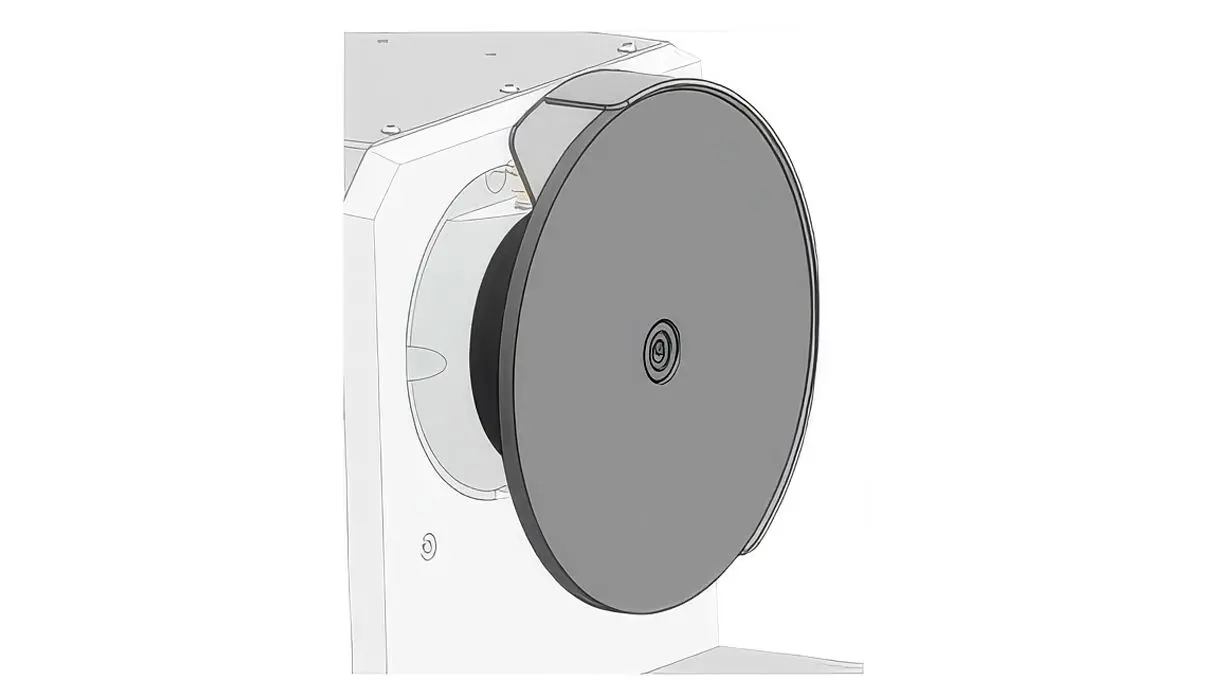

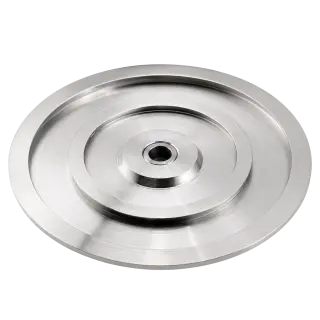

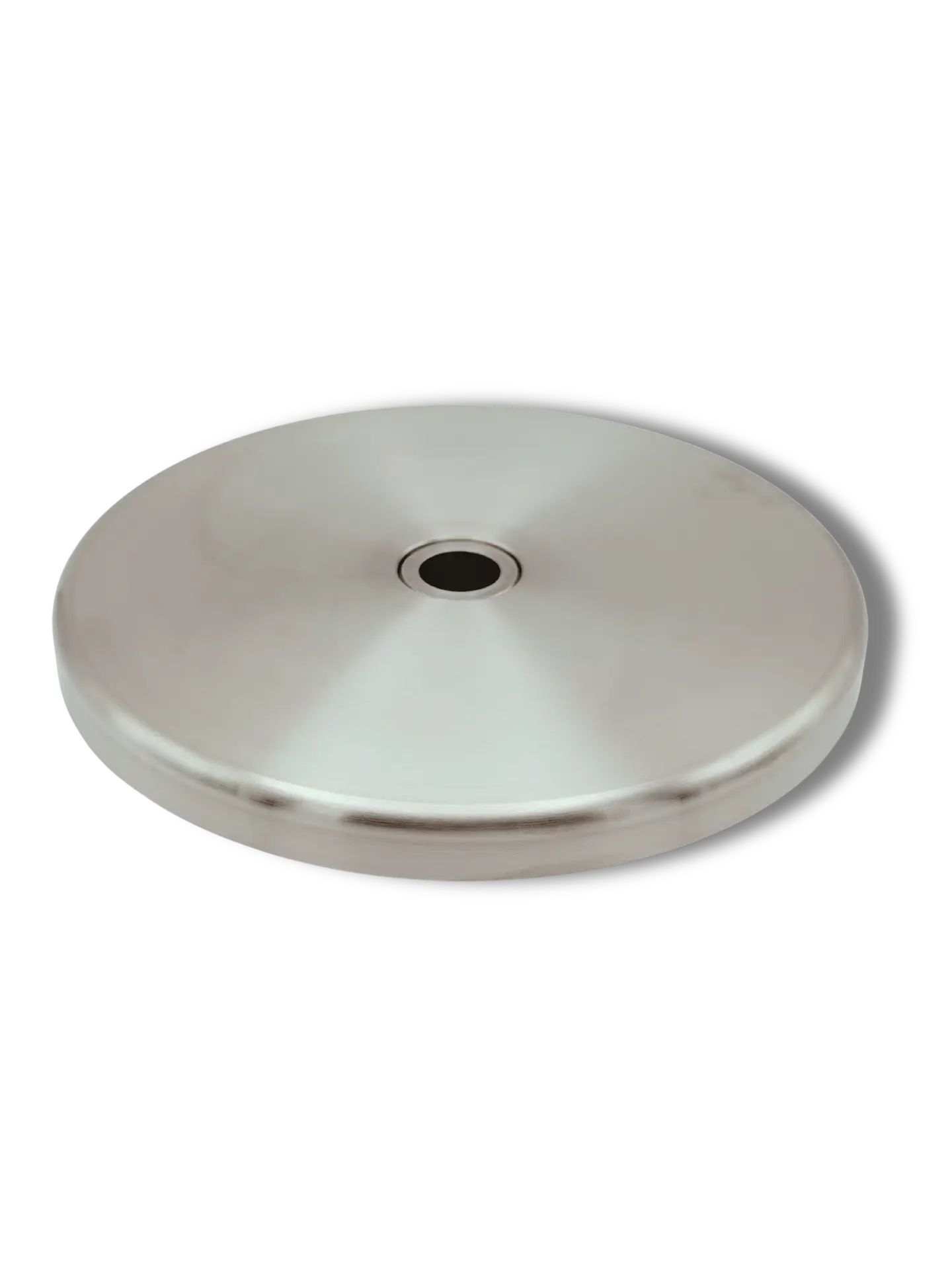

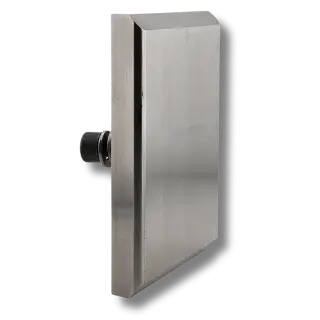

240mm Lapping, 180mm lapping, 75mm lapping, round shape lapping, vertical satin, polishing, dual satin, horizontal belt, dual belts, chamfering, cerclage and more.

All modules can be easily changed in seconds.

Lapping & vertical satinPolishingDual satinHorizontal beltDual belts

XPRO TOUCH · PROFILES

A machine that remembers how you work.

A profile is a named set of six speeds. Choose it once, and the machine is set up, whoever is at the bench.

By operatorEach polisher can keep their own settings."Polisher n°1- David"

By watch referenceRepeat the exact same finish across your references."Oyster 114060 steel"

By customer partReady again for the next production order. Guarantee 100% repeatability to your customers."Munstermann GmbH — clasp"

By tool & abrasiveNamed after what it was proven with."Bracelet satin DiamondCutP400"

HOW IT WORKS

From profile to speed,

in 2 taps.

Tap PROFILEYour own list of profile appears.
Choose oneYour settings are displayed. Ready to work.
Tap a settingIt becomes the set speed at once.
START, then CONFIRM?Two taps, so it never starts by accident.

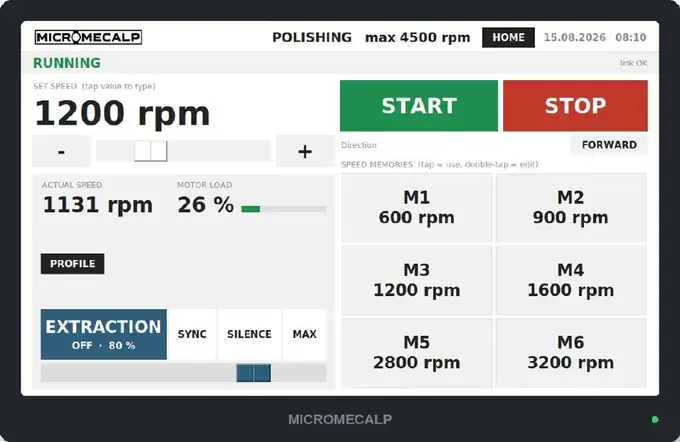

XPRO Touch screen showing the saved finishing profiles

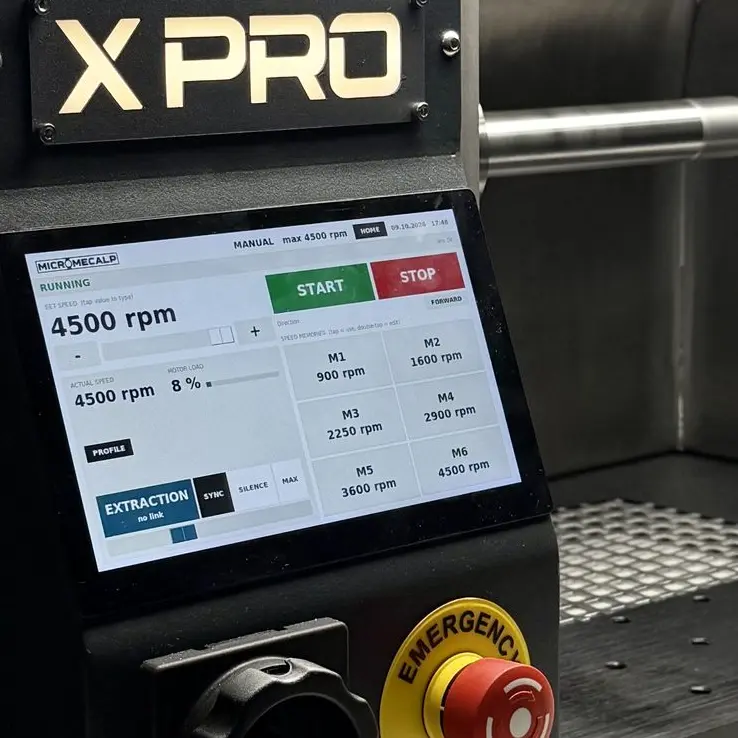

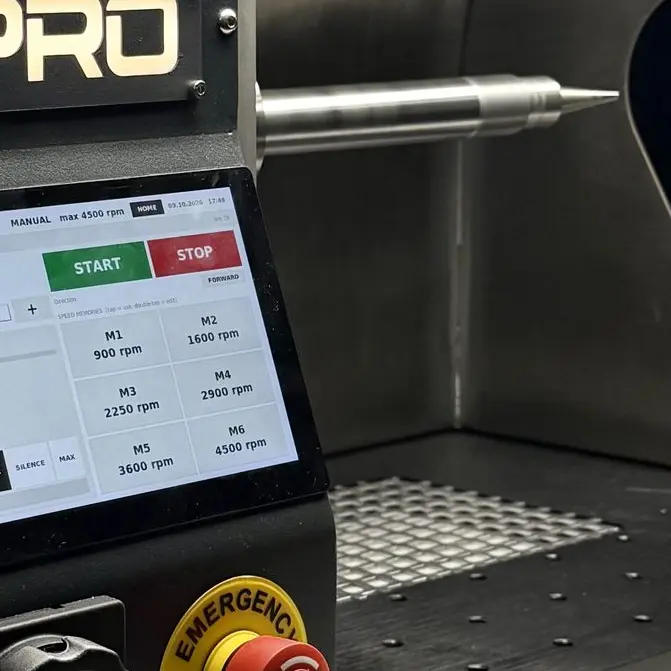

XPRO Touch control screen, speed memories

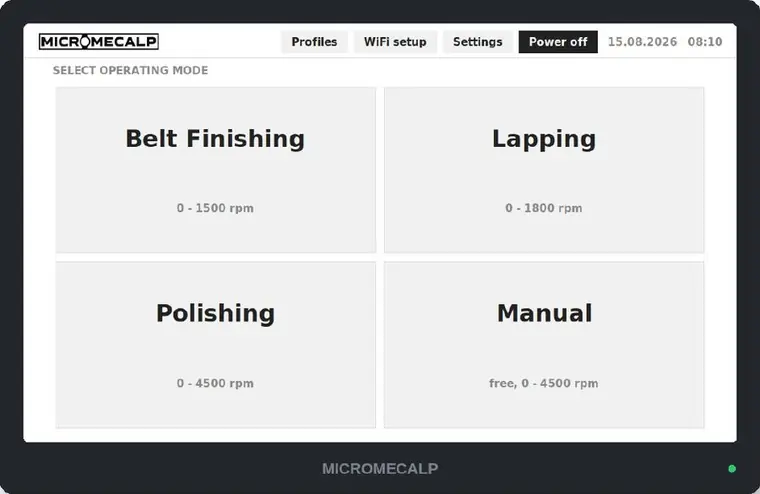

01 — CHOOSE THE PROCESS

Four modes, each with its own limit.

Belt finishing to 1,500 rpm, lapping to 1,800, polishing and manual to 4,500. A value above the limit is simply capped.

02 — WORK

Six speeds, one tap away.

The profile fills M1 to M6. Tap one and the spindle goes straight to it, with the actual speed and motor load shown live.

03 — EXTRACTION

It follows the spindle.

With SYNC on, extraction starts and stops with the machine. Power from 10 to 100 %, a quiet preset, and the airflow shown in m³/h.

REMOTE SERVICE & MAINTENANCE

We keep an eye on it, so you don't have to.

With remote access on, the machine tells us how it is running. That changes what a service call looks like.

CONNECTED

MICROMECALP serviceMunich · view-only

Remote helpCall us and we already see what you see: Wich profil, which tools, which settings, temperatures etc. Most questions are settled on the phone, without a visit.

Software updatesNew functions arrive over WiFi in about a minute, checked for integrity before they install. Your settings, memories and profiles are never touched.

Proactive maintenance PILOTService planned by the hours and the load your machine has really run, not by the calendar.

DRAG TO MOVE

You stay in control.Remote access can be switched off on the machine if you do not want to use the remote services.

Works offlineWiFi only for updates and monitoring.

Profiles are keptUntouched by software updates.

"How to use" in 3 minutesA 14-step guided tutorial to start.

Seven languagesFrom Deutsch to 日本語.

Technical data

Configuration	Configurable all-in-one workstation
Main power supply	208V-220 V · 1 ph / 3 ph · 50/60 Hz
Motor	MICROMECALP direct-drive spindle, 1.5 kW (High torque power profile)
Speed	Variable, 50 to 4500 rpm (up to 6000rpm optional)
Noise level	49 dB(A) at 150 rpm · 53 dB(A) at 2800 rpm · 58 dB(A) at maximum
Control unit	XPRO 1/2 Touch : Full OLED4K Control Touch Panel XPRO 1/2 : On/off switch and power relay · forward / reverse · setup speed · emergency stop
Base plate	15 mm aeronautical-grade aluminium, black anodised and hard-coated, rectified, with two holes for the dust extraction system
Chassis	Made of Steel, with integrated air-cooling management and illuminated XPRO logo
Belt side (LEFT)	Compatible with belt arms and accessories
Precision side (RIGHT)	Universal MICROMECALP shaft, precision spindle on high-precision bearings, hardened and rectified steel
Accessory compatibility	All X-range accessories
Dimensions & Weight	XPRO 2 : 1000x400x600mm - 79kg XPRO 1 : 600x400x600mm - 62kg
