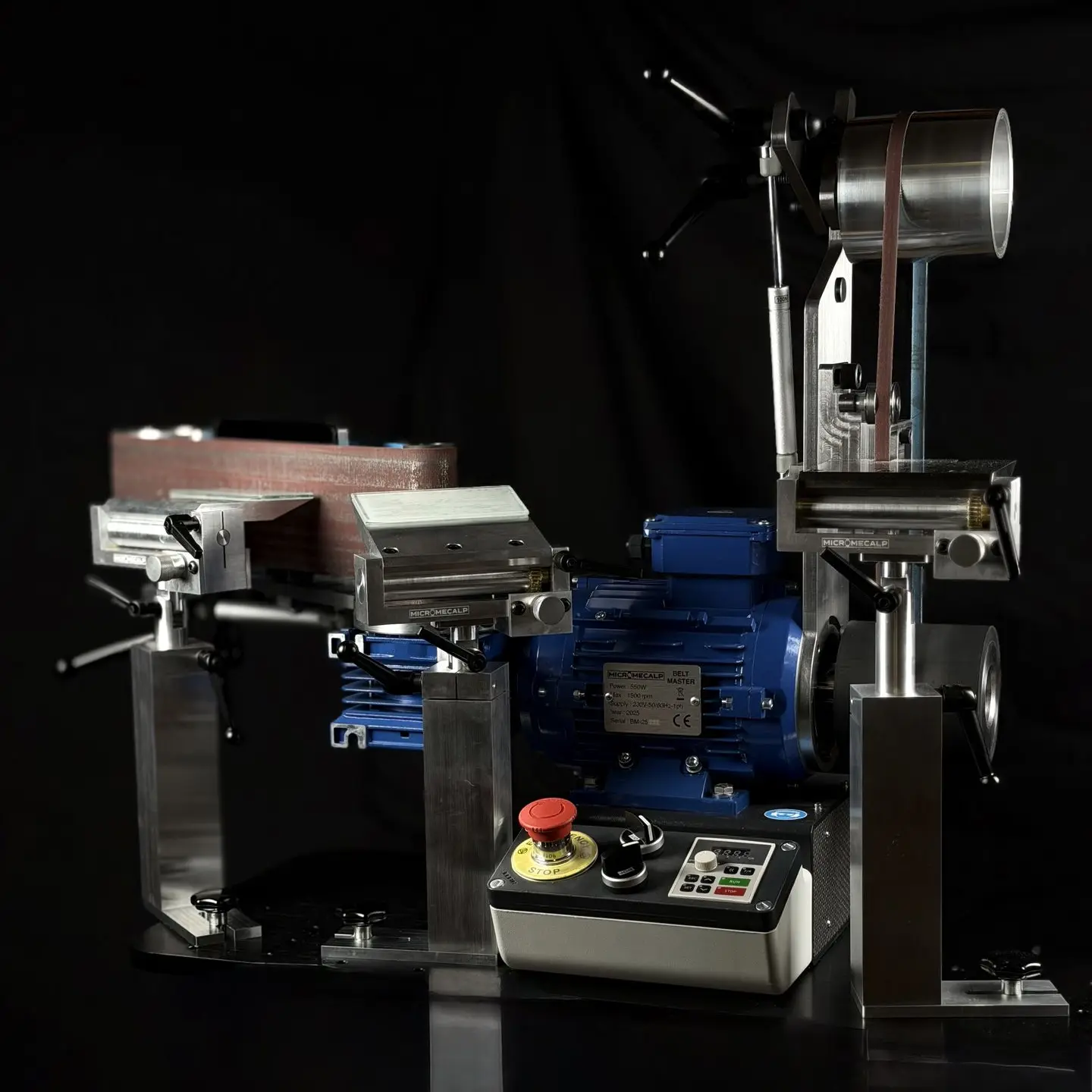

Finishing machines · Combined belt unit
BELTMASTER
Made for precision satin, brushed effects and preparation before polishing. This is our machine built for belts and nothing else.
The ultimate belt beast
Made exclusively for satin and brushed finishes, and the preparation that comes before polishing. A dedicated belt machine with an open-wheel design that holds the belt tension and the contact angle constant. This is what makes a satin run look the same from factory finishes on the last part as on the first. It fits (of course) all our X-series belt system accessories.

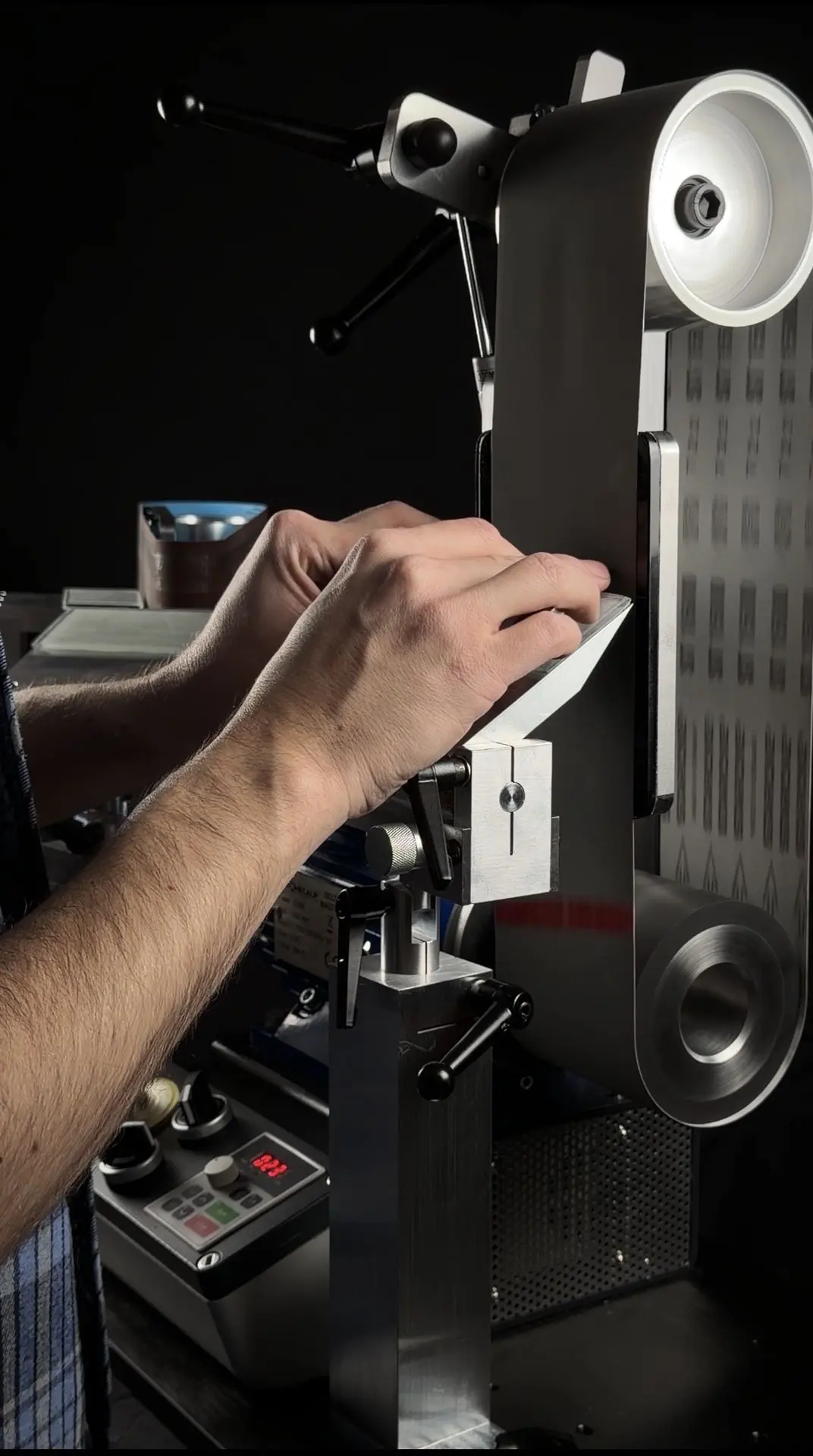

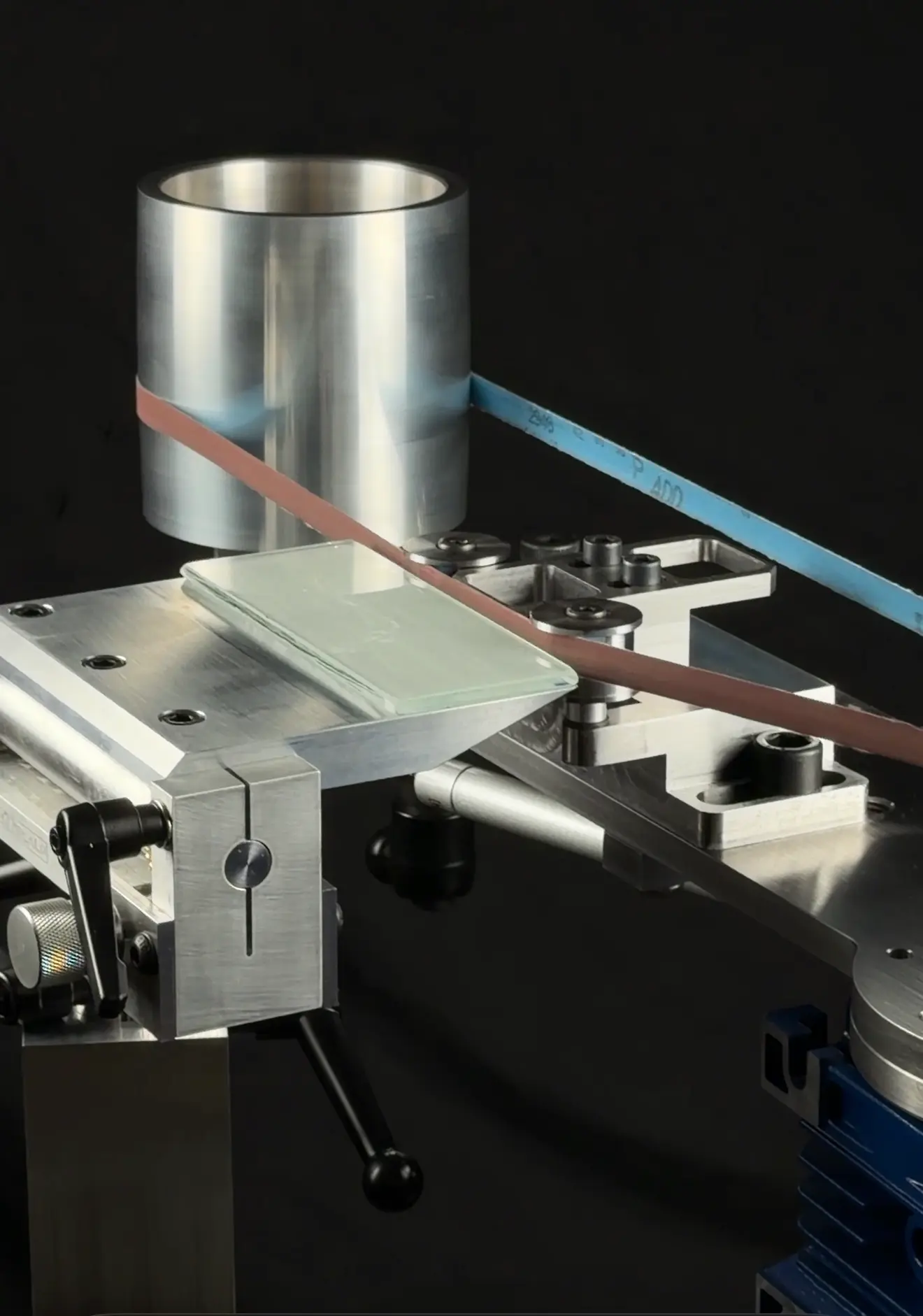

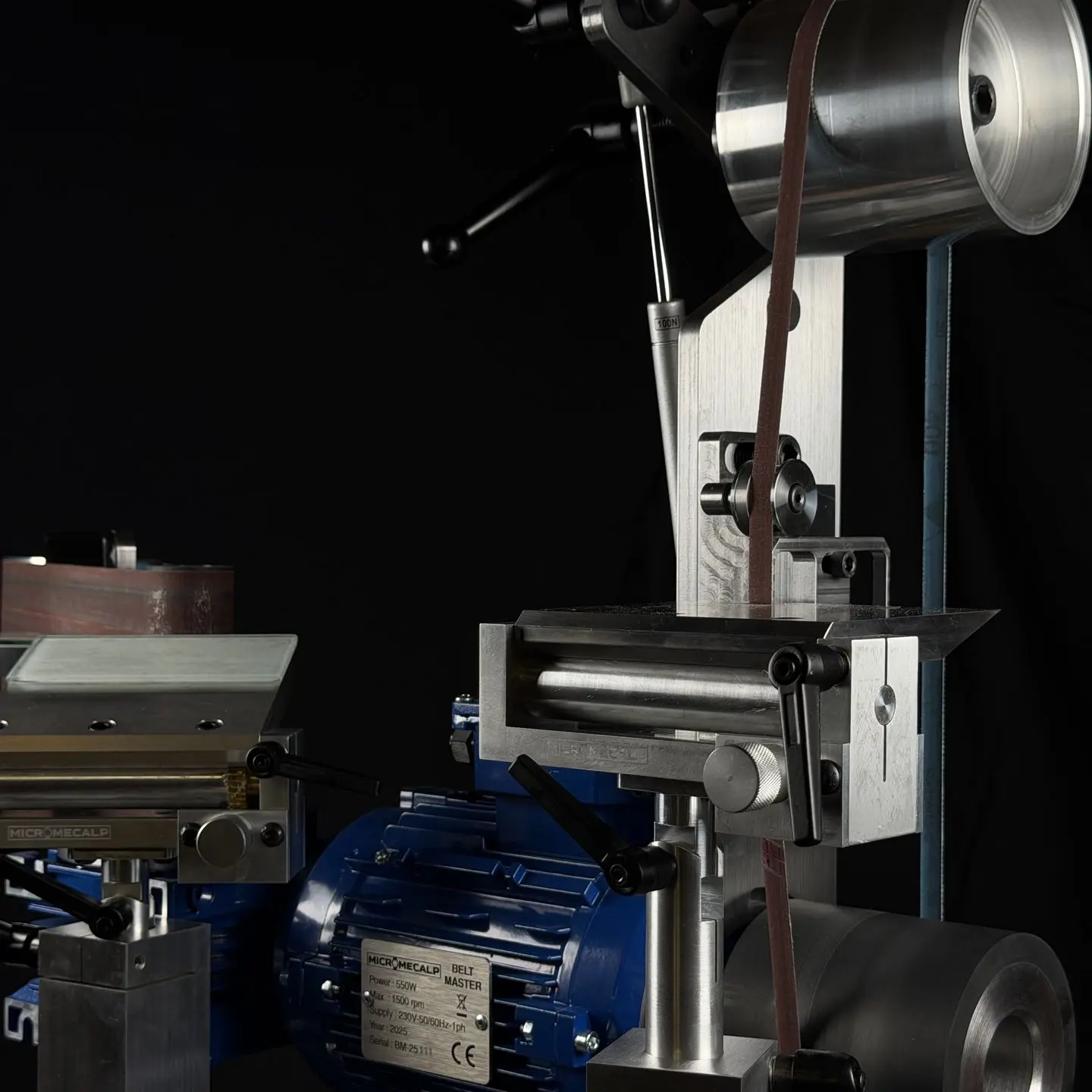

Belts from 6 mm to 100 mm
The versatile belt system accommodates 6, 10, and 15 mm belts and features a reversible design.
It allows for the use of one tool across three belt widths without requiring disassembly from the machine when switching belt sizes. The standard arm operates with 100 × 1000 mm belts on a tempered ceramic glass backing that shares the same thermal properties as natural stone. This ensures you achieve flawless matte finishes on your satin brushes. With a precision flatness of up to 3um, it provides the most stable flat surface necessary for (re)creating various surfaces. Both features are also utilized in the XPRO belt side.
In the workshop
See the BELTMASTER in action.

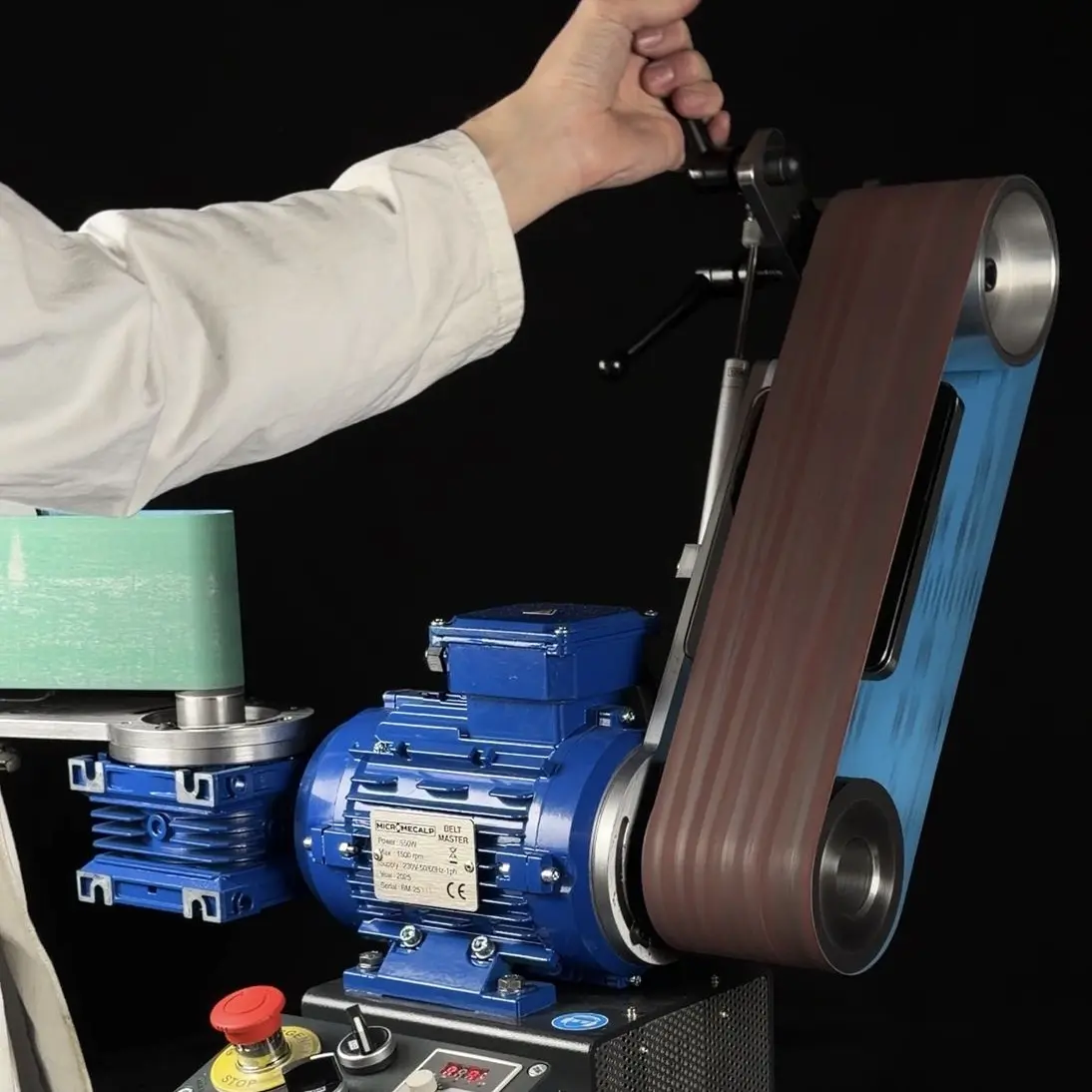

Filmed in our Munich workshop. See the belt arm in vertical and horizontal positions, how to change the belt, and the finish you can achieve.
The actual machine, doing what it was built to do.
Technical data
| Main power supply | 208-220 V – 1 ph – 50 / 60 Hz |
|---|---|
| Motor | 0.75 CV – 550 W |
| Variable frequency drive | with constant-torque PID software |
| Control unit | Variable speed control 0 to 1800 rpm ON/OFF switch and power relay Option switch Emergency stop |
| Base plate | 15 mm aeronautical aluminium grade - Rectified - Black anodized and hardened. |
| Belt grinding system Left and right | High tensile strength carbon steel Anti-corrosion surface treatment Safe and Patented self-tensioning belt system Bronze-beryllium-PTFE antifriction spacers Adjustable belt guidance, automatic pre-centering and manual adjustment |

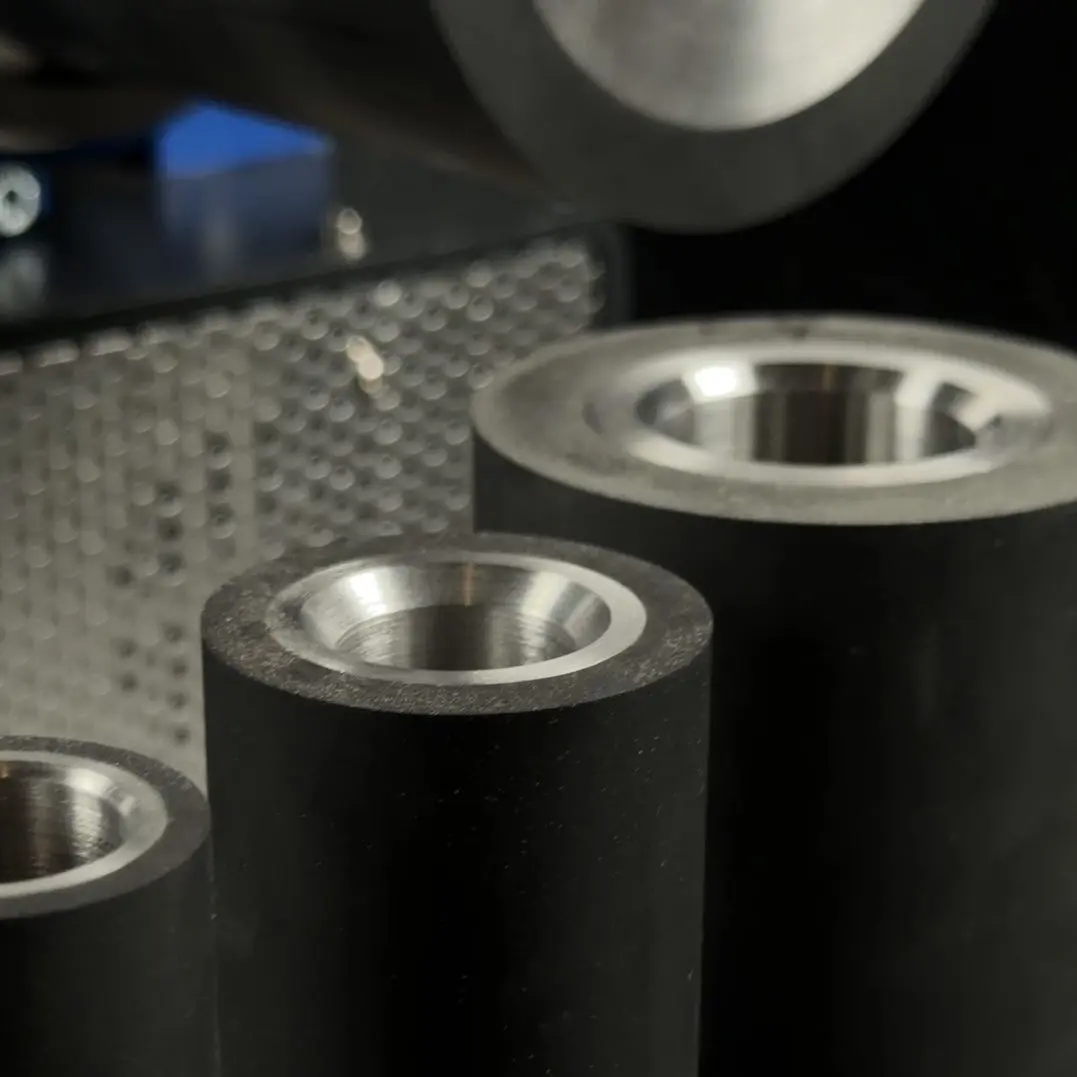

| Driving wheelsExchangeable | Vertical side Ø30-to-100 mm – hardness from soft to hard (40shore to 80shore) Horizontal side Ø30-to-100 mm – hardness from soft to hard |
| Tracking wheels | 2x Ø100 mm – forged aluminium - Micromecalp centering profile. Supported on 4 high-precision ball bearings (FAG®) |

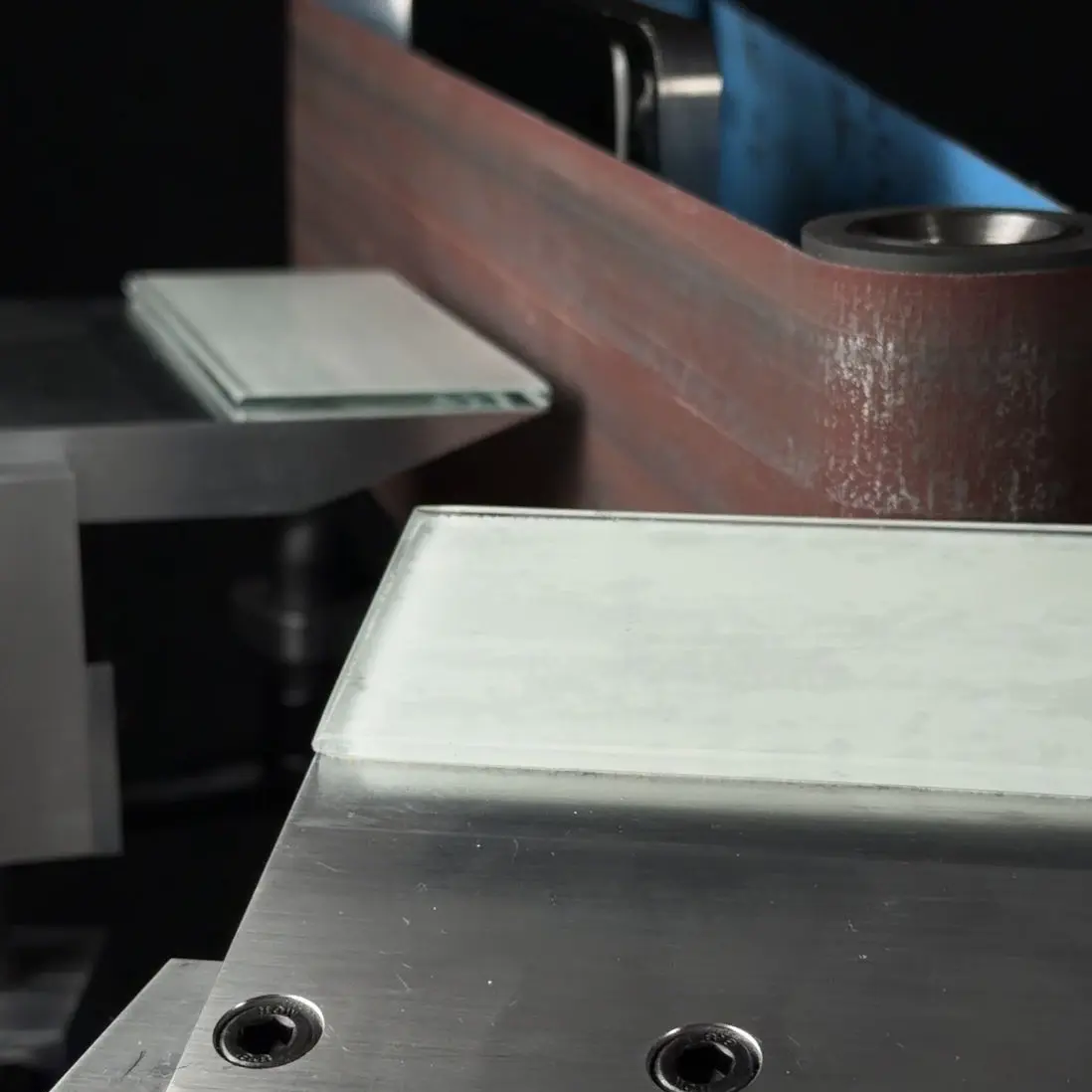

| Backing plate Exchangeable | 120 × 160 mm – tempered ceramic glass surface |
In operation
Shot in the Munich workshop or at customer sites
Patented belt tensioning system
Designed around the way watchmakers actually work.
We know how watchmakers and polishers work. Precision finishing requires a clear view of the surface, complete control of the part and direct access to the belt and wheels.
On conventional machines, guards often get in the way. And we know what happens in real workshops: operators remove them to get the access they need, leaving dangerous trapping points exposed.
We wanted to solve this problem at its source.
Rather than simply covering the hazard with a guard, we redesigned the belt tensioning system to address the trapping risk itself.
Our patented system allows the belt to give way when something enters its path. Instead of maintaining high tension and trapping the obstruction, the tensioning arm moves and releases belt tension.
The result is an open working area, designed for precision finishing without compromising access.
- See exactly what you're doing — Keep a clear view of the surface throughout the finishing process.
- Work without restrictions — Hold and position parts naturally, without a guard getting in the way.
- Access every working area — Finish contours, edges and complex shapes directly against the backplate and wheels.
Patent-protected design. Belt tensioning system tested across the working areas, with a maximum measured compression force that is safe for the use. Safety concept developed in accordance with EN ISO 12100 and documented in the machine's CE technical file. Professional use only. Mandatory operator training.
Scope of supply
Every machine leaves assembled, measured, tested and delivered with:
| Qty | Included | Description |
| Base Plate, Motor, Angle-Box, Control Panel, Power cable and connectors...etc. | ||
| 2 × | Complete Self-tensioning Belt System | Our patented Instant belt replacement with integrated tilt adjustment for perfect tracking. 100 × 1000 mm belts are standard; the 6-position wheel and gas spring support other sizes and wheel diameters. |

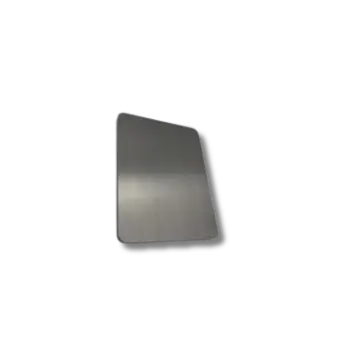

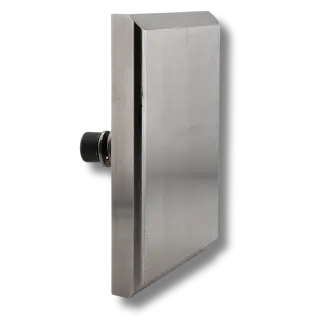

| 2 × | Ceramic Backplates | Made with a ceramic that has the same thermal coefficient as natural stone. Adjustable to 3 heights (high / normal / low), for perfect flatness and thermal management. Low-friction chamfered edges, quick-swap to dovetail or fine belt in under 10 seconds. |

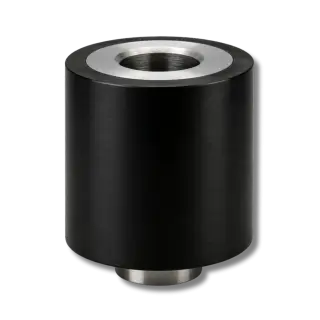

| 1 × | Driving wheel Ø100 mm + 1 × Driving wheel Ø40 mm | Thermally over-moulded with technical rubber, not glued, for better grip and stability. Hardness is customisable; the core is high tensile carbon steel. |
| 2 × | Knobs for accessories | To fix all your supports and accessories on the base of the Machine. |
1x | Documentation | Operating manual, CE declaration of conformity, test report. |
Accessories
Options EXTRACT · catalogue 2026Examples of optional tooling for the BELT MASTER (shared with the XPRO and EVO belt side).
Fitted in under a minute, spacers included.
Ø30 / 40 / 65 / 100 mm

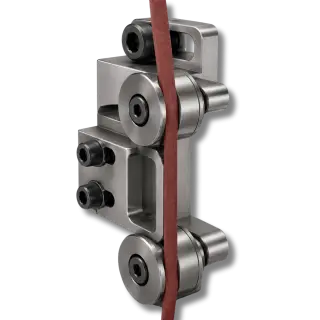

Fits the fine belt system in 5 seconds.
Available with leather or gummy top.
UL/CSA certified materials
Where it sits in the range
X550 MONOSingle precision unit
X550 DUODouble precision unit
X550 EVOCombined lapping unit
BELT MASTERCombined belt unit
XPRO SeriesAll-in-oneNot sure which one fits your bench?
Tell us the parts you finish and the space you have. We come back with a configuration and a price.
